GE Appliances

GE Appliances Products

Use the links below to navigate to a specific GE Appliances section to start shopping!

AZ45 Series | AZ65 Series | Accessories

NOW STOCKING

GE ZONELINE® Packaged Terminal Air Conditioners

Hotpoint PTACs available by quote request.

AZ45 Series

GE Appliances
AZ45 Series

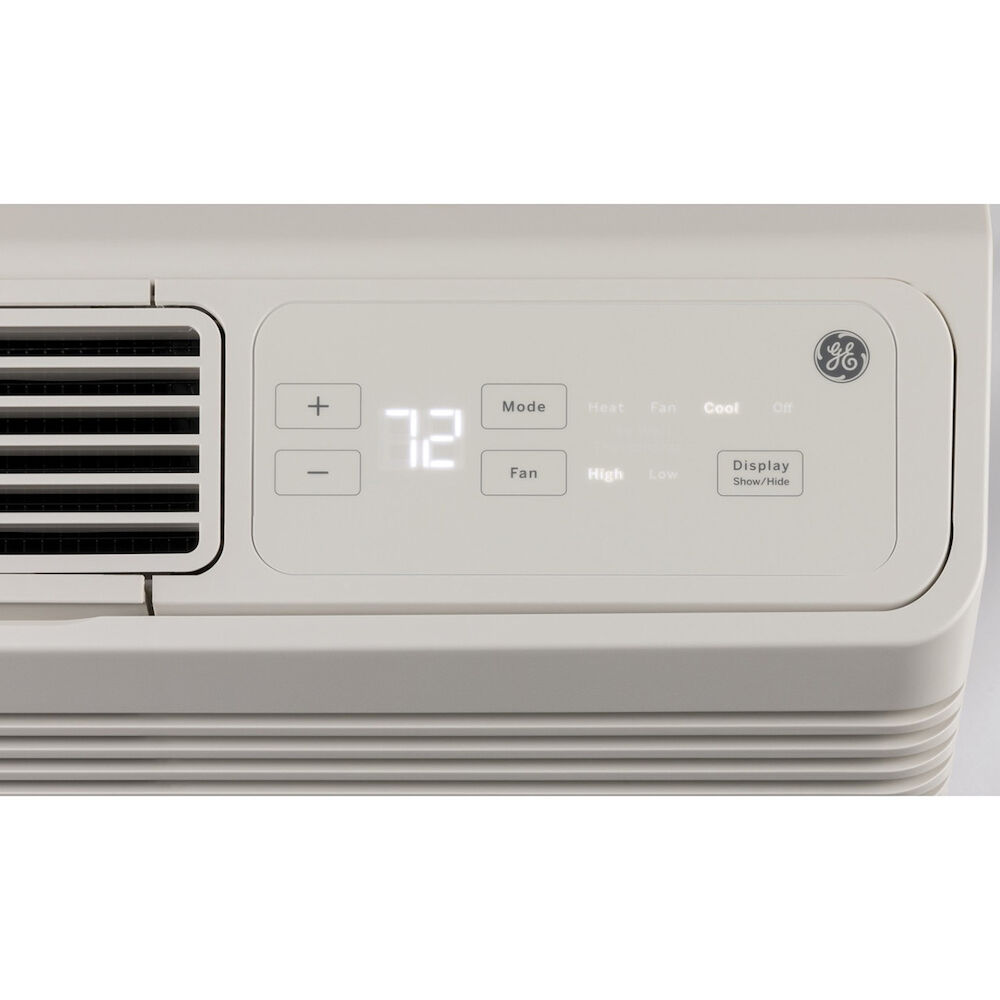

AZ45 Series Controls

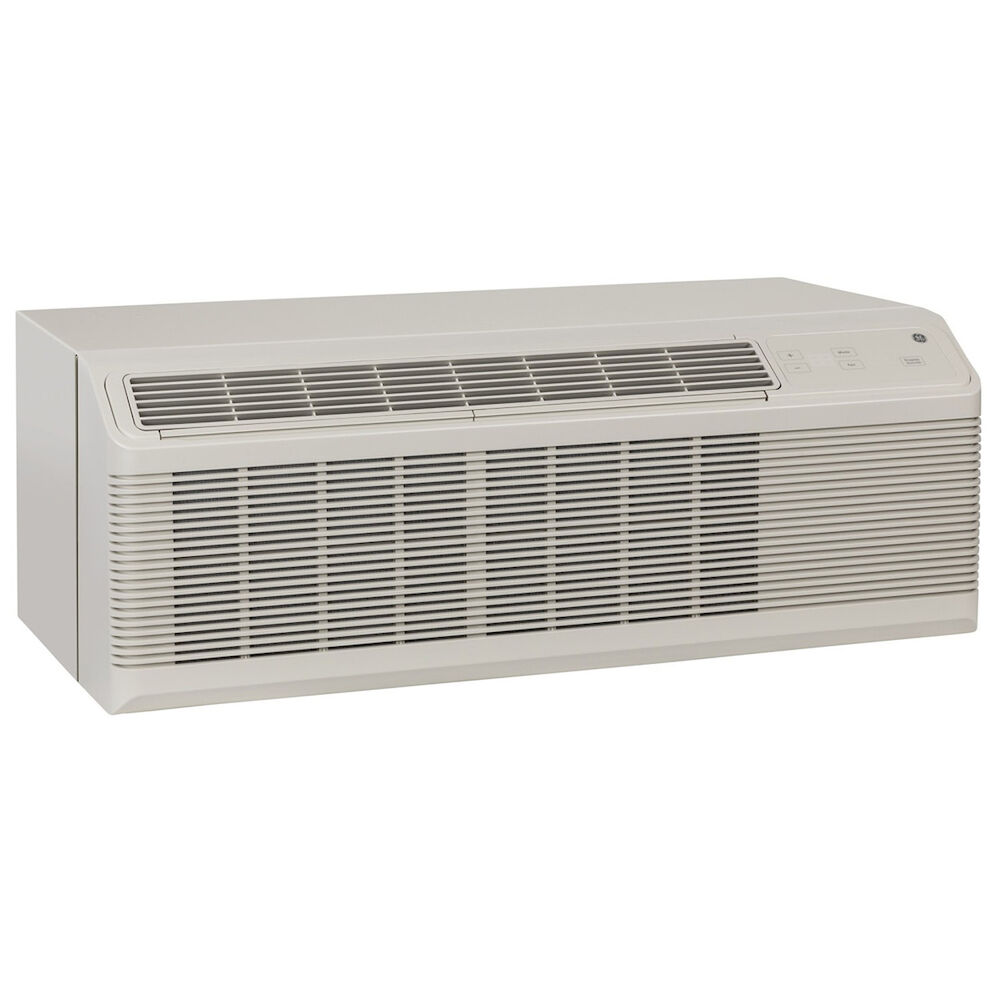

AZ45 Series

  • Digital LED display
  • Variable fresh air vent control
  • Cross-flow blower
  • Two DC fan motors
  • Smart fan cooling
  • Heat and Freeze Sentinel
  • Remote thermostat capability
  • Electronic temperature limiting
  • Works with central desk control and through wall fans

AZ45 Series with Makeup Air

Includes all AZ45 features plus:

  • Delivers 25-50 CFM of continuous, Makeup Air
  • Dehumidifies incoming air when outdoor relative humidity is above 55% and outdoor temperatures are above 50 degrees F
  • Motorized vent door
  • May reduce the need for rooftop units

AZ45 SERIES | COOLING AND ELECTRIC HEAT

Item # MFG # Description BTU EER Volts
GEAAZ45E07DAB AZ45E07DAB 7.2K BTU Cool PTAC Elec Heat 230/208V 7,200/7,000 13.4/13.4 230/208
GEAAZ45E09DAB AZ45E09DAB 9.7K BTU Cool PTAC Elec Heat 230/208V 9,700/9,600 12.1/12.1 230/208
GEAAZ45E12DAB AZ45E12DAB 11.6KBTU Cool PTAC Elec Heat 230/208V 11,600/11,500 11.7/11.8 230/208
GEAAZ45E15DAB AZ45E15DAB 14.2KBTU Cool PTAC Elec Heat 230/208V 14,200/14,100 10.5/10.5 230/208

Mobile/tablet users scroll table sideways to view all columns.

AZ45 GE ZONELINE® WITH MAKEUP AIR

Item # MFG # Description BTU EER Volts
GEAAZ45E09DBM AZ45E09DBM 9K BTU Cool PTAC Makeup Air 230/208V 9,100/9,100 11.5/11.5 230/208
GEAAZ45E12DBM AZ45E12DBM 12K BTU Cool PTAC Makeup Air 230/208V 11,700/11/500 11.6/11.6 230/208

Mobile/tablet users scroll table sideways to view all columns.

AZ65 Series

GE Appliances
AZ65 Series
AZ65 Series Controls

AZ65 Series

Includes all resistant heat features, plus:

  • Staged heating
  • Heat pump with back up resistance heat option
  • Reverse cycle defrost

AZ65 Series with Makeup Air

Includes all resistant heat Makeup Air features, plus:

  • Staged heating
  • Heat pump with back up resistance heat option
  • Reverse cycle defrost

AZ65 SERIES | HEAT PUMP

Item # MFG # Description Cooling BTU Heating BTU EER COP* Volts
GEAAZ65H07DAB AZ65H07DAB 7.1K BTU Cool PTAC Heat Pump 230/208V 7,100/6,900 6,200/6,100 13.0/13.0 4.0/4.0 230/208
GEAAZ65H09DAB AZ65H09DAB 9.7K BTU Cool PTAC Heat Pump 230/208V 9,700/9,600 8,100/8,000 12.2/12.2 3.7/3.7 230/208
GEAAZ65H12DAB AZ65H12DAB 12K BTU Cool PTAC Heat Pump 230/208V 11,900/11,800 10,400/10,300 11.6/11.8 3.6/3.6 230/208
GEAAZ65H15DAB AZ65H15DAB 14.4KBTU Cool PTAC Heat Pump 230/208V 14,400/14,200 13,500/13,300 10.5/10/5 3.2/3.2 230/208

Mobile/tablet users scroll table sideways to view all columns.

AZ65 SERIES | HEAT PUMP WITH MAKEUP AIR

Item # MFG # Description Cooling BTU Heating BTU EER COP* Volts
GEAAZ65H07DBM AZ65H07DBM 7K BTU Cool PTAC HP w/MA 230/208V 7,100/7,000 6,200/6,100 12.5/12.5 4.0/4.0 230/208
GEAAZ65H09DBM AZ65H07DBM 9.2K BTU Cool PTAC HP w/MA 230/208V 9,200/9,100 8,100/8,000 11.3/11.3 3.3/3.3 230/208
GEAAZ65H12DBM AZ65H12DBM 11.5K BTU Cool PTAC HP w/MA 230/208V 11,500/11,400 10,200/10,000 11.2/11.2 3.5/3.5 230/208
GEAAZ65H15DBM AZ65H15DBM 14K BTU Cool PTAC HP w/MA 230/208V 14,000/13,800 13,200/13,000 10.1/10/1 3.2/3.2 230/208
Item # MFG # Description Cooling BTU Heating BTU EER COP* Volts
GEAAZ65H07EBM AZ65H07EBM 6.9K BTU Cool PTAC HP w/ MA 265V 6900 6000 12.5 3.9 265
GEAAZ65H09EBM AZ65H09EBM 9.2K BTU Cool PTAC HP w/ MA 265V 9,200 8,100 11.5 3.6 265
GEAAZ65H12EBM AZ65H12EBM 12K BTU Cool PTAC HP w/ MA 265V 11,600 10,000 11.3 3.4 265

Mobile/tablet users scroll table sideways to view all columns.

Accessories

GE Appliances

Zoneline® Accessories

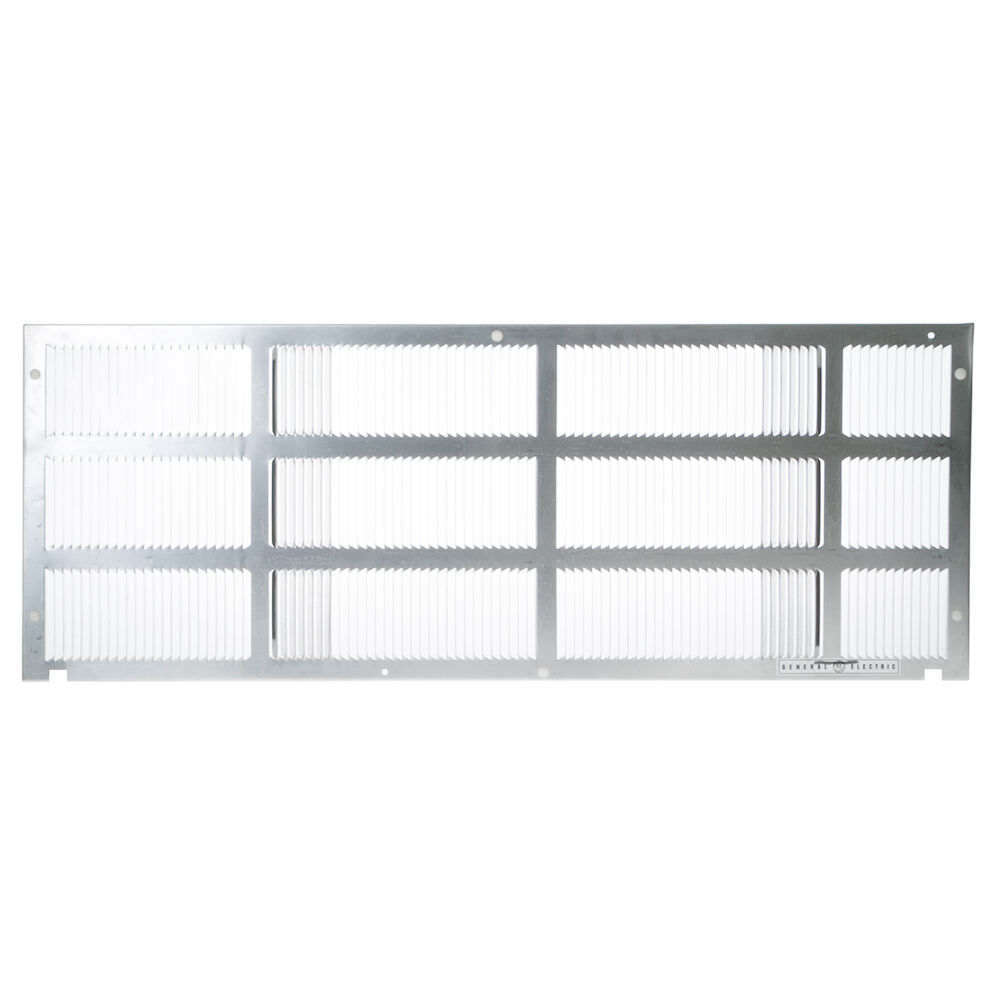

Stamped Aluminum Exterior Rear Grille

RAG60

Stamped Aluminum Exterior Rear Grille

  • Optimizes air flow RAK40
  • Made of durable aluminum

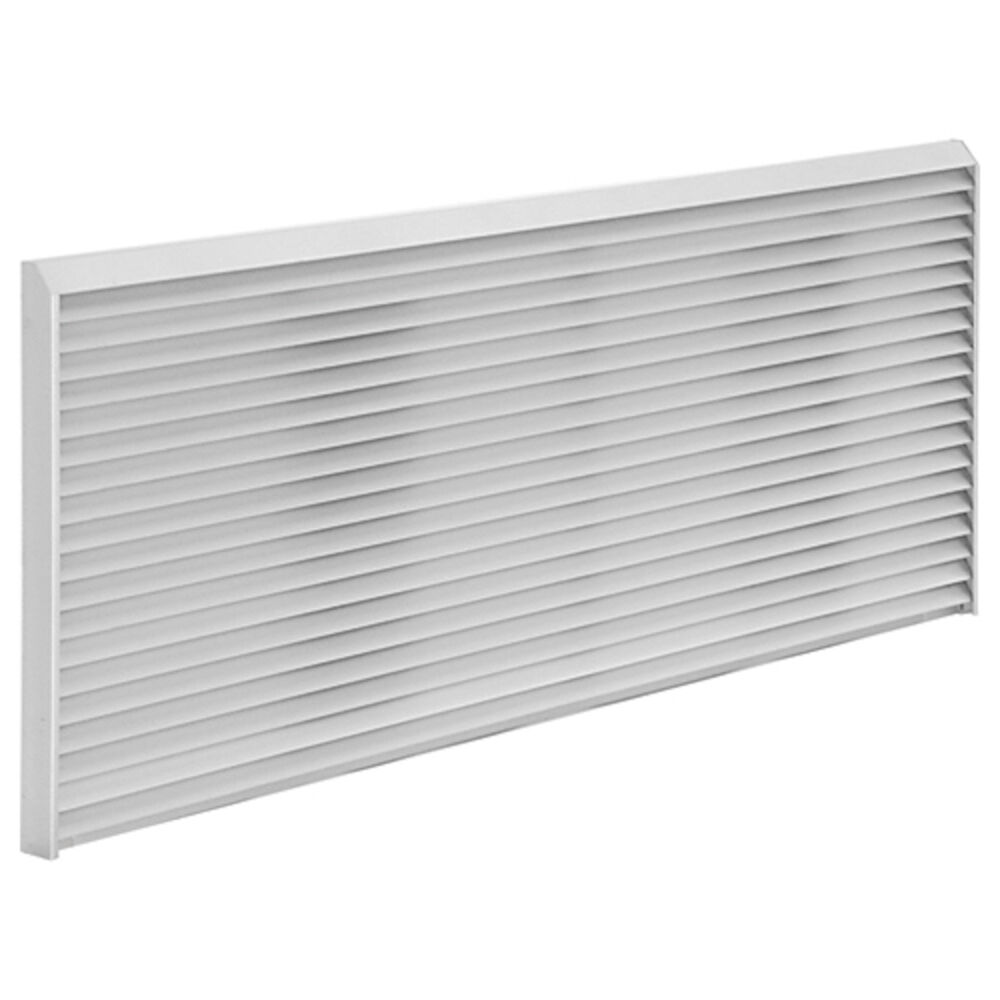

Aluminum Architectural Outdoor Grille

RAG67

Aluminum Architectural Outdoor Grille

  • Extruded aluminum outdoor grille
  • Grilles are paintable to match building décor

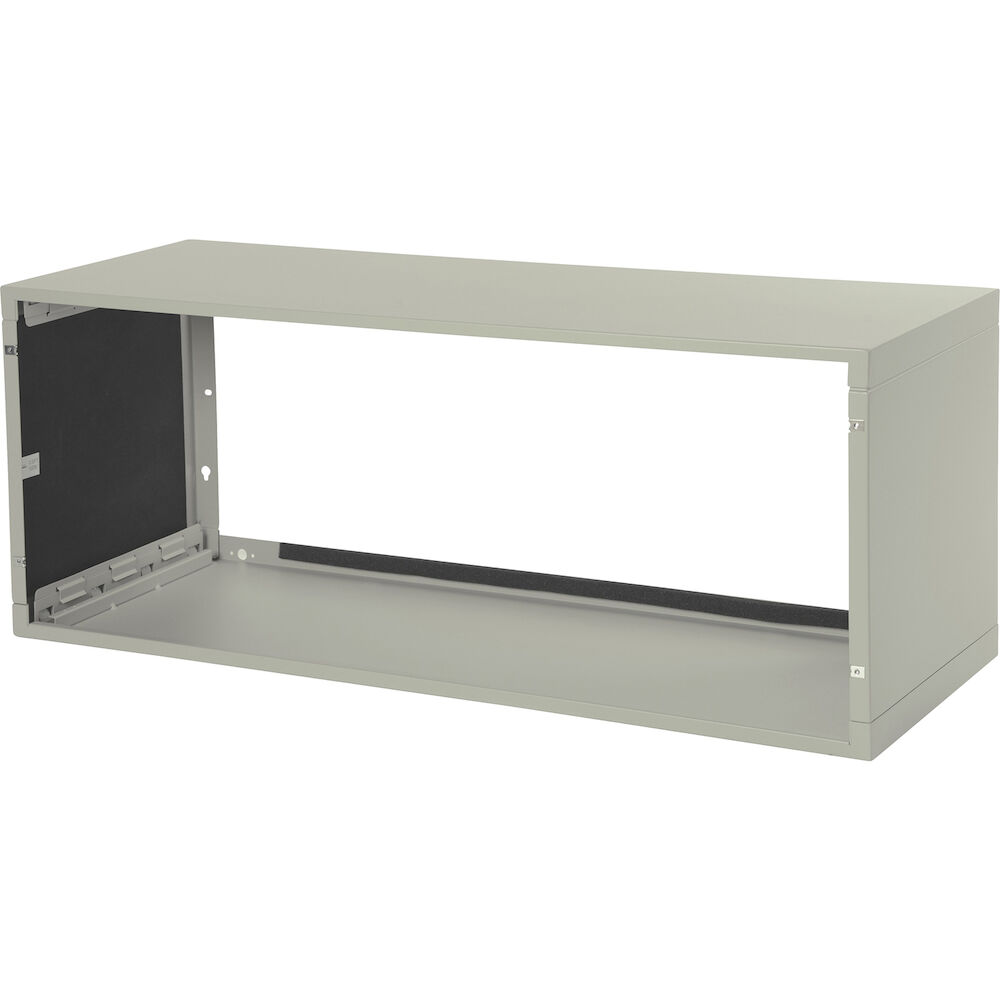

Quick Snap Wall Sleeve

RAB81

Quick Snap Wall Sleeve

  • Universal design
  • Insulated top & sides
  • Heavy gauge metal
  • Color matched
  • 4-piece “quick snap” design
  • Ships flat (3" H x 15" D x 45.5" L) assembled in field

ZONELINE® ACCESSORIES

Item # MFG # Description Cooling BTU Heating BTU EER COP* Volts
GEARAG60 RAG60 Stamped Aluminum Exterior Rear Grille 7,100/6,900 6,200/6,100 13.0/13.0 4.0/4.0 230/208
GEARAG67 RAG67 Aluminum Architectural Outdoor Grille 9,700/9,600 8,100/8,000 12.2/12.2 3.7/3.7 230/208
GEARAB81 RAB81 PTAC Wall Sleeve Quick Snap 11,900/11,800 10,400/40,300 11.6/11.8 3.6/3.6 230/208
Item # MFG # Description Volts Heater Wattage Circuit Ampacity
GEARAK315P RAK315P 15 Amp LCDI Power Cord 230/208 2.4/1.96 KW 15
GEARAK320P RAK320P 20 Amp LCDI Power Cord 230/208 3.4/2.8 KW 20
GEARAK330P RAK330P 30 Amp LCDI Power Cord 230/208 4.8/3.99 KW 30

Mobile/tablet users scroll table sideways to view all columns.
