Zurn® Wilkins

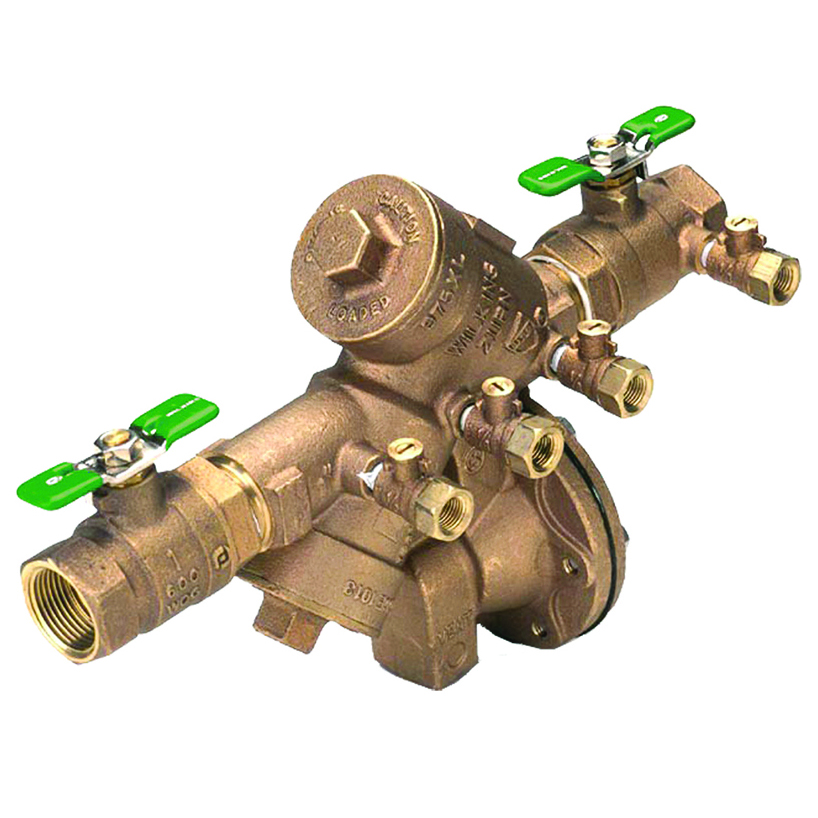

975XL2-H 1-1/4 Y-Pattern Backflow Preventer, Quarter-Turn Ball Valve, Cast Bronze Body

WIL975XL2H MFG #: 975XL2-H 1-1/4
975XL2-H 1-1/4 Y-Pattern Backflow Preventer, Quarter-Turn Ball Valve, Cast Bronze Body
  • Backflow Type: Reduced Pressure
  • Ball Valve / Gate Valve Type: Quarter-Turn Ball Valve
  • Body Material: Cast Bronze
  • End Style: NPT
  • Nominal Size: 1-1/4 in
  • Dimensions: 17 in L
  • Manufacturer: Zurn Industries
  • Manufacturer #: 975XL2-H 1-1/4
  • Port Type: Full
  • Pressure Rating: 175 psi
  • Series: 975XL2
  • Temperature Rating: 180 degF
  • Type: Y-Pattern
The Zurn® Wilkins 975XL2 Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. The wye pattern, bronze body provides separate access to each check valve and the relief valve for servicing.

Zurn® Wilkins Backflow Preventer, Y-Pattern, Series: 975XL2, 1-1/4 in Nominal, NPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Cast Bronze Body, 17 in L
  • Features
  • Product Videos
  • Wye pattern design for short lay-length
  • Short lay-length eases replacement labor costs
  • A tried and true design favored by installers worldwide
  • 0.25% maximum weighted average lead content
  • 350 psi hydrostatic test pressure
