Webstone

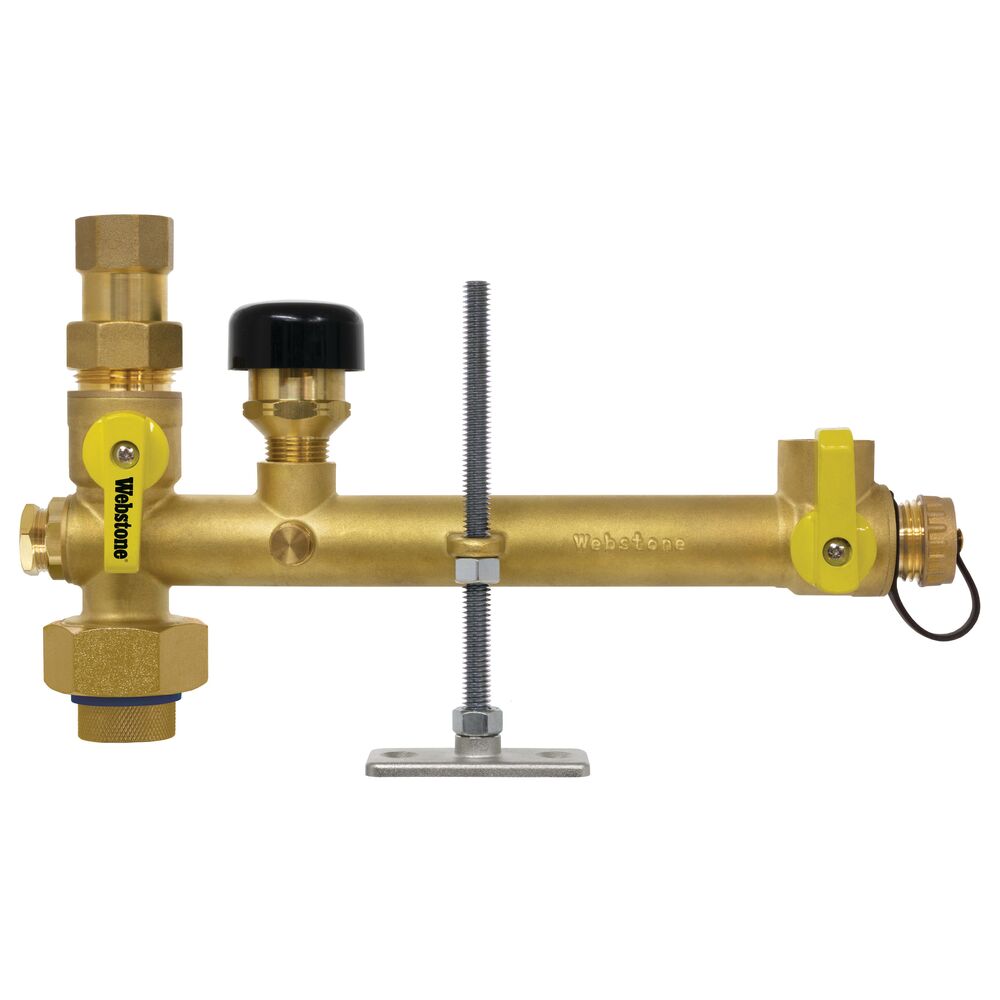

H-42652W-VR H-X265-VR Valve, 1/2 x 3/4 in, FIP Union x FIP x FIP x Hose, Lead Free DZR Brass Body, Full Port, EPDM Softgoods

WBSH42652WVR MFG #: H-42652W-VR
H-42652W-VR H-X265-VR Valve, 1/2 x 3/4 in, FIP Union x FIP x FIP x Hose, Lead Free DZR Brass Body, Full Port, EPDM Softgoods
  • Body Material: Lead Free DZR Brass
  • Domestic / Import: Import
  • End Style: FIP Union x FIP x FIP x Hose
  • Nominal Size: 1/2 x 3/4 in
  • Port Type: Full
  • Softgoods Material: EPDM
  • Actuator Type: Quarter Turn Handle
  • Ball Material: Stainless Steel
  • Dimensions: 2.44 in H x 5.12 in W x 12.2 in L
  • Manufacturer: NIBCO Inc.
  • Manufacturer #: H-42652W-VR
  • Media: Water
  • Pressure Rating: 150 psi
  • Series: H-X265-VR
  • Temperature Rating: 180 deg F
  • Trim Material: PTFE
Pro-Pal Water Heater Supply Valve, w/ Expansion Tank Service, Full Port DZR Brass Ball w/ Union End, w/ 3/4 Expansion Tank Port & Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2", 1/2" & 1/8"), Includes Vacuum Relief Valve & Mounting Hardware

Webstone, H-42652W-VR, Valve, Series: H-X265-VR, 1/2 x 3/4 in Nominal, FIP Union x FIP x FIP x Hose End Style, 150 psi Pressure, 180 deg F, Full Port, Media: Water, Quarter Turn Handle Actuator, Stainless Steel Ball, Lead Free DZR Brass Body, PTFE Trim, EPDM Softgoods, 2.44 in H x 5.12 in W x 12.2 in L Dimensions, Import
  • Features
  • Includes
  • Simplifies Storage Tank Water Heater Installations
  • Integrated Valves Isolate the Water Supply and Expansion Tank for Service
  • 1/2 in FIP cold water tapping for Water Heater Tempering Valve
  • Compact version available if expansion tank is not required
  • Replaces 16 Components
  • Eliminates 15 Leakpaths
  • This valve is actuated by a blowout proof stem
  • Double O-Ring Stem Seals
  • Compatible with 3/4 in MIP expansion tanks up to 5 gal
  • Available in FIP Union x SWT x FIP x Hose, FIP Union x Push x FIP x Hose, FIP Union x Press x FIP x Hose, FIP Union x MIP x FIP x Hose, FIP Union x FIP x FIP x Hose, FIP Union x G-Thread x FIP x Hose
Support Hardware and Vacuum Relief Valve
