Taco®

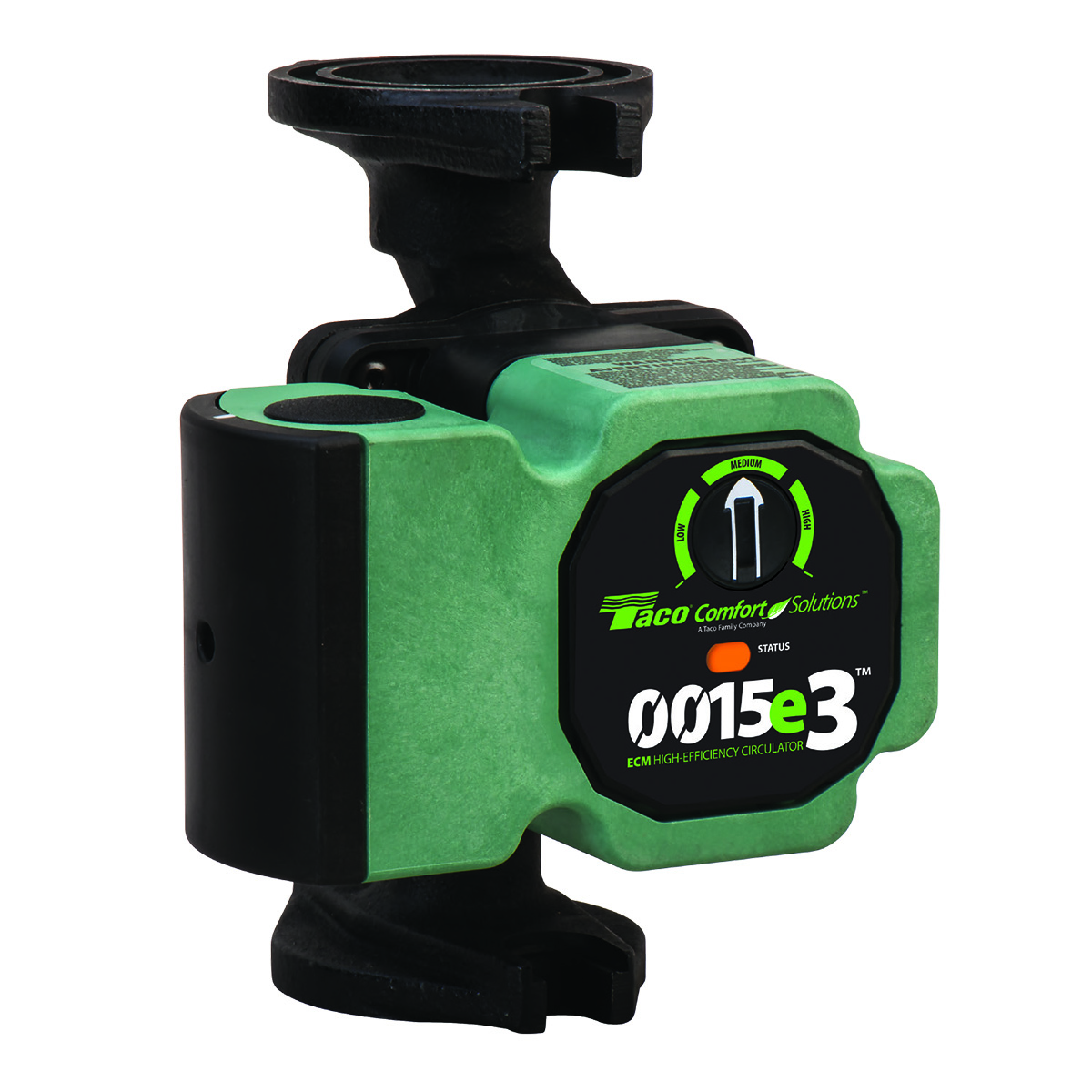

0015E3-F2 ECM High-Efficiency Circulator Pump with ECM, 3-Speed, Standard Flange

TAC0015E3F2
0015E3-F2 ECM High-Efficiency Circulator Pump with ECM, 3-Speed, Standard Flange
  • Flow Rate: 16 gpm
  • Voltage Rating: 120 VAC
  • Dimensions: 6-3/8 in H x 6 in W x 5 in D
  • Manufacturer: TACO
  • Material: Cast Iron
  • Max Head: 18 ft
  • Phase: 1
  • Pressure Rating: 125 psi
  • Series: 0015e3
  • Temperature Rating: 230 deg F
Taco 0015e3™is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00® famous

  • Features
  • Replaces ALL 3-speed hydronic circulators in its class
  • 3 easy settings. Install it, forget it.™
  • BIO Barrier® protects pump from system contaminants
  • SureStart ™ automatic unblocking and air purging mode
  • High-efficiency ECM motor uses up to 85% less electricity
  • Integral Flow Check (IFC®) included
