Taco®

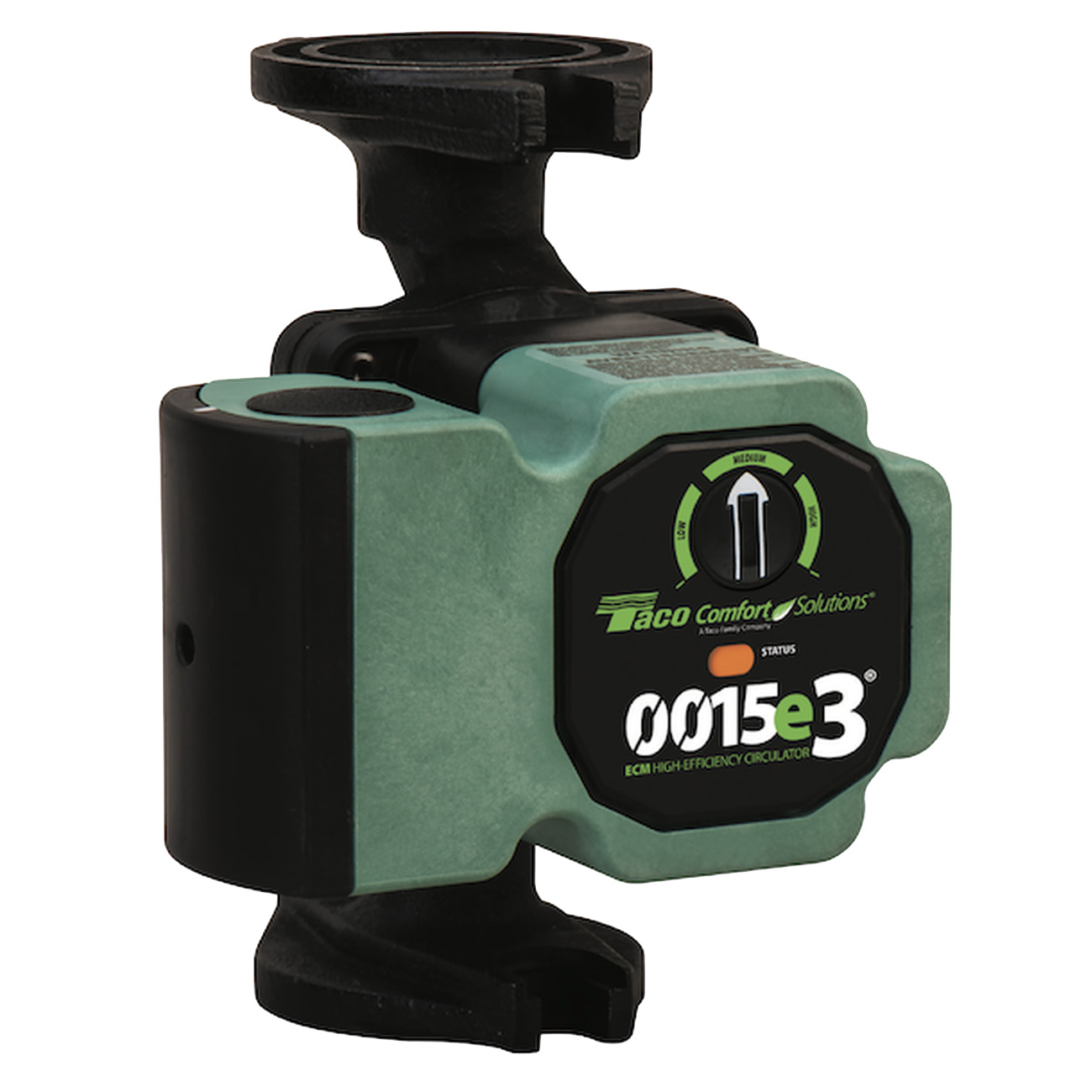

0015E3-2F2 ECM High-Efficiency Circulator Pump with ECM Permanent Magnet Motor

TAC0015E32F2 MFG #: 0015E3-2F2
0015E3-2F2 ECM High-Efficiency Circulator Pump with ECM Permanent Magnet Motor
  • Flow Rate: 16 gpm
  • Voltage Rating: 120 VAC
  • Amperage: 0.54 A
  • Dimensions: 6-3/8 in H x 6 in W x 5 in D
  • Manufacturer: TACO
  • Manufacturer #: 0015E3-2F2
  • Material: Cast Iron
  • Max Head: 18 ft
  • Pressure Rating: 125 psi
  • Series: 0015e
  • Speed: 4830 rpm
  • Temperature Rating: 230 deg F
Taco 0015e3™is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00® famous.

  • Features
  • 3 Speed Settings
  • Dual electrical knockouts, 6” stranded wire leads included for easy wiring.
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.
  • Double insulated. No ground wire required.
