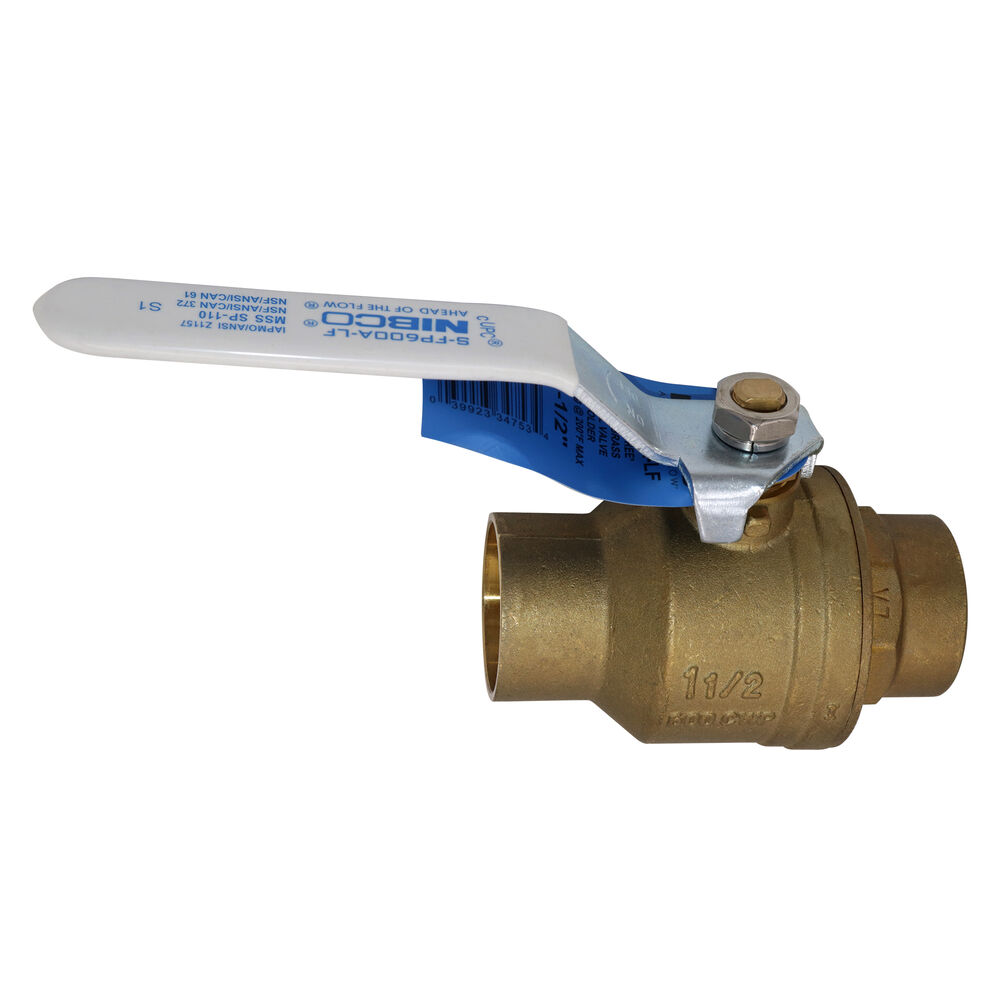

NIBCO® NJ998XC S-FP-600A-LF 2-Piece Ball Valve, 1-1/2 in, Female Solder, Brass Body, Full Port, Fluorocarbon/PTFE Softgoods, Import
NSFP600ALFJ
MFG #: NJ998XC
- Body Material: BRASS
- Domestic / Import: Import
- End Style: Female Solder
- Nominal Size: 1-1/2 in
- Port Type: Full
- Softgoods Material: Fluorocarbon/PTFE
- Actuator Type: Standard Lever
- Ball Material: Chrome Plated Brass
- Inlet to Outlet Length: 4.42
- Manufacturer: NIBCO Inc.
- Manufacturer #: NJ998XC
- Media: Water
- Orifice Size: 1.63
- Pressure Rating: 600 psi
- Series: S-FP-600A-LF
- Top to Inlet Center: 6.18
- Trim Material: Brass Stem and PTFE Ball Seat
- Type: 2-Piece
The NIBCO® Lead free brass ball valve with solder end connections provides bubble-tight shut-off. The valve's PTFE seats and Lead free ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water applications. The NIBCO® Lead free brass ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features solder end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2-year limited warranty.
NIBCO® Ball Valve, 2-Piece, Series: S-FP-600A-LF, 1-1/2 in Nominal, Female Solder End Style, 600 psi Pressure, Full Port, Media: Water, 1.63 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 4.42 in Inlet to Outlet Length, 6.18 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Ball Seat Trim, Fluorocarbon/PTFE Softgoods, Import
NIBCO® Ball Valve, 2-Piece, Series: S-FP-600A-LF, 1-1/2 in Nominal, Female Solder End Style, 600 psi Pressure, Full Port, Media: Water, 1.63 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 4.42 in Inlet to Outlet Length, 6.18 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Ball Seat Trim, Fluorocarbon/PTFE Softgoods, Import
- Features
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Female solder cup end connections
- Fluorocarbon O-Ring
