First Supply Approved

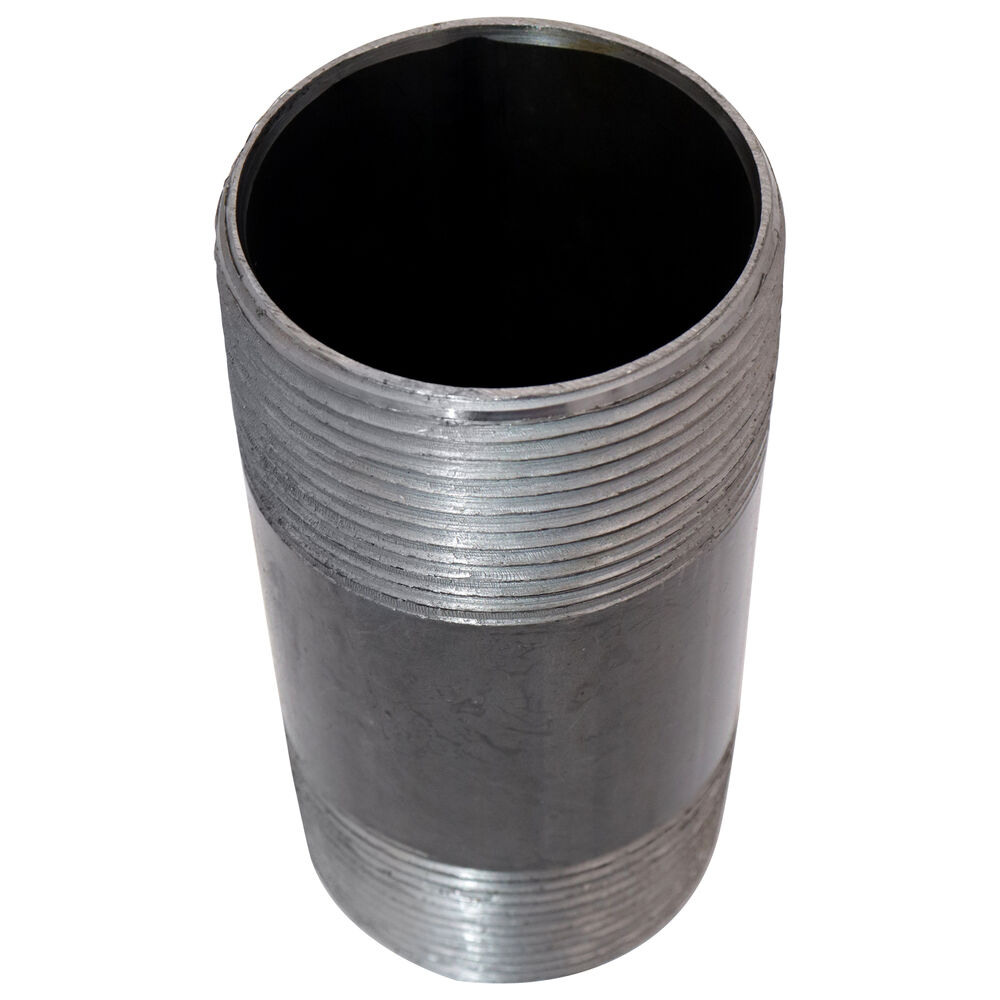

Pipe Nipple, 2-1/2 inx5-1/2 in L NPT, Steel, Black, SCH 40/STD, Welded, Import

IBNLT
Pipe Nipple, 2-1/2 inx5-1/2 in L NPT, Steel, Black, SCH 40/STD, Welded, Import
  • Domestic / Import: Import
  • End Style: Butt Weld
  • Finish: Black
  • Material: Carbon Steel
  • Method of Manufacture: Welded
  • Nominal Size: 2-1/2 in
  • Schedule Rating: SCH 40/STD
  • Dimensions: 2-7/8 in OD
  • Length: 5-1/2 in
  • Manufacturer: First Supply Approved
  • Series: 83NI4
Pipe Nipple, Series: 83NI4, 2-1/2 in Nominal Size, Butt Weld, 5-1/2 in Length, SCH 40/STD, Carbon Steel, Black, Import
  • Features
  • Ends are cut square to the central axis
  • All burrs on the inside are removed
  • Threaded on both ends
  • Threads are right hand on both ends
  • The ends of the pipe nipples are chamfered on the outside at an angle of 35 deg plus/minus 10 deg to the central axis
