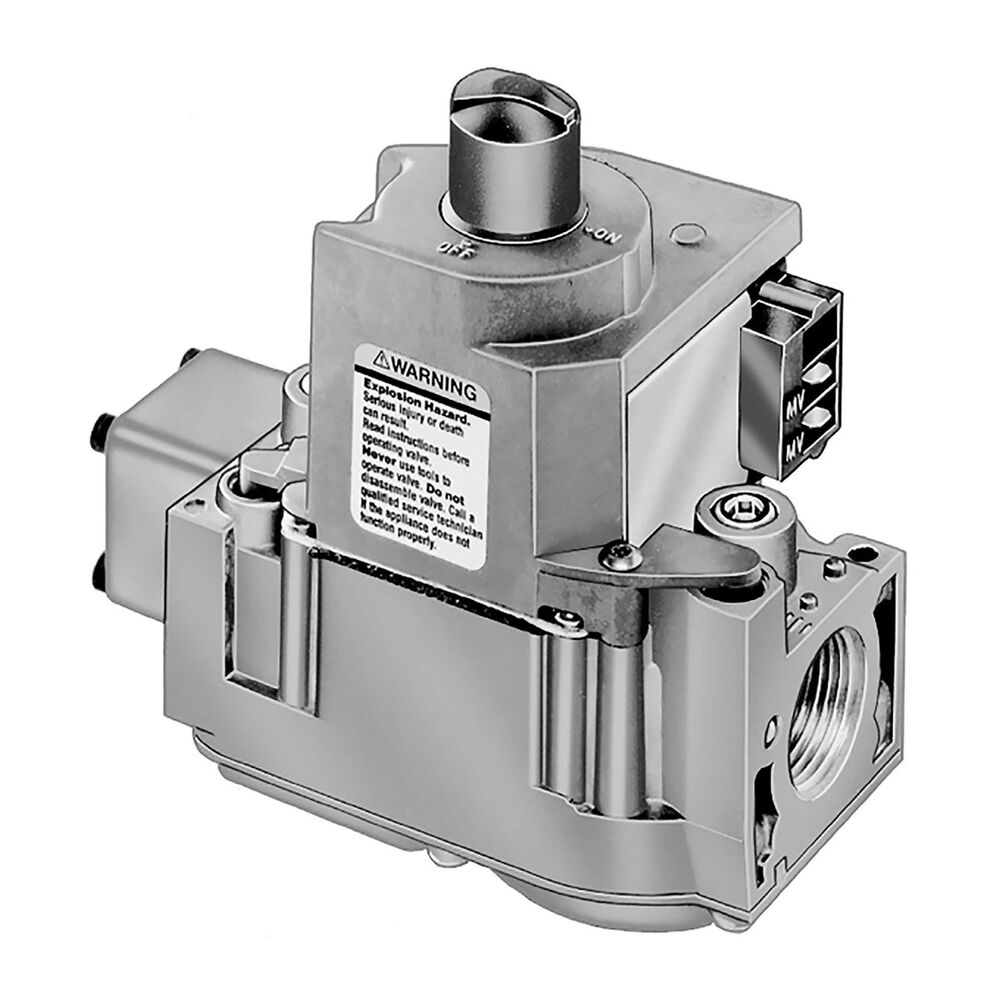

Honeywell VR8305M3506/U 1-Stage Gas Valve, 1/2x3/4 in, 0.5 psi, Direct Ignition, 30000 to 370000 Btu/hr Nominal

HONVR8305M3506 MFG #: VR8305M3506/U
Honeywell VR8305M3506/U 1-Stage Gas Valve, 1/2x3/4 in, 0.5 psi, Direct Ignition, 30000 to 370000 Btu/hr Nominal
  • Ignition Type: Direct
  • Nominal Capacity: 30,000 to 370,000 BTU/hr
  • Nominal Size: 1/2 x 3/4 in
  • Pressure Rating: 0.5 psi
  • Coil Voltage: 24 VAC 60 Hz
  • Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
  • Electrical Connections: 1/4 in Male Quick Connect Terminal
  • Gas Type: Natural Gas
  • Manufacturer: Honeywell
  • Manufacturer #: VR8305M3506/U
  • Series: VR8305
  • Temperature Rating: -40 to 175 degF
  • Type: 1-Stage
Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.

Gas Valve, 1-Stage, Series: VR8305, 1/2x3/4 in Nominal, 0.5 psi, Direct Ignition, 30000 to 370000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, 1/4 in Male Quick Connect Terminal, -40 to 175 deg F, 5-3/8 in Hx4-1/16 in Wx2-11/16 in D
  • Features
  • Controls include manual valve, two automatic operators and pressure regulator
  • Provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
  • On/off lighting sequence
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Use VR8305 models with S89-C/E/F and S87 series 5 and later
  • Straight-through body pattern
  • 0 to 90 deg in any direction from the upright position of the gas control knob mounting
  • 3-1/2 in WC pressure regulator setting
  • Standard opening gas vavle
