Apollo®

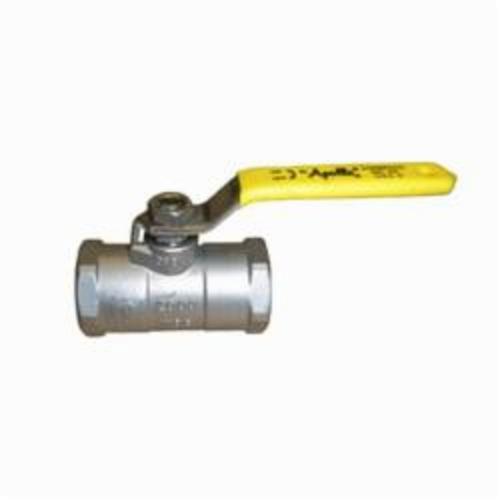

96-107-24 96-100 Uni-Body Ball Valve, Stainless Steel Body

CON9610724 MFG #: 96-107-24
96-107-24 96-100 Uni-Body Ball Valve, Stainless Steel Body
  • Body Material: Stainless Steel
  • Domestic / Import: Domestic
  • End Style: FNPT
  • Nominal Size: 1-1/2 in
  • Port Type: Reduced
  • Softgoods Material: PTFE/Graphite/MPTFE
  • Actuator Type: Lever
  • Ball Material: 316 Stainless Steel
  • Inlet to Outlet Length: 4
  • Manufacturer: Apollo Conbraco
  • Manufacturer #: 96-107-24
  • Media: Fluid
  • Series: 96-100
  • Top to Inlet Center: 2.66
  • Trim Material: 316 Stainless Steel Stem and RPTFE Seat
  • Type: Uni-Body
Apollo™ Ball Valve, Uni-Body, Series: 96-100, 1-1/2 in Nominal, FNPT, 1500 psig CWP, Reduced Port, Media: Fluid, Lever Actuator, 316 Stainless Steel Ball, 4 in Inlet to Outlet Length, 2.66 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/Graphite/MPTFE Softgoods, Domestic
  • Features
  • Includes
  • Product Videos
  • 24: RPTFE bearing
  • Investment cast body
  • Blow-out proof stem
  • Compact ball valve
  • Cold non-shock
  • 150 psig saturated steam
  • Vacuum service to 29 in Hg
  • PTFE seal, MPTFE stem packing and graphite packing
Adjustable Packing Gland
