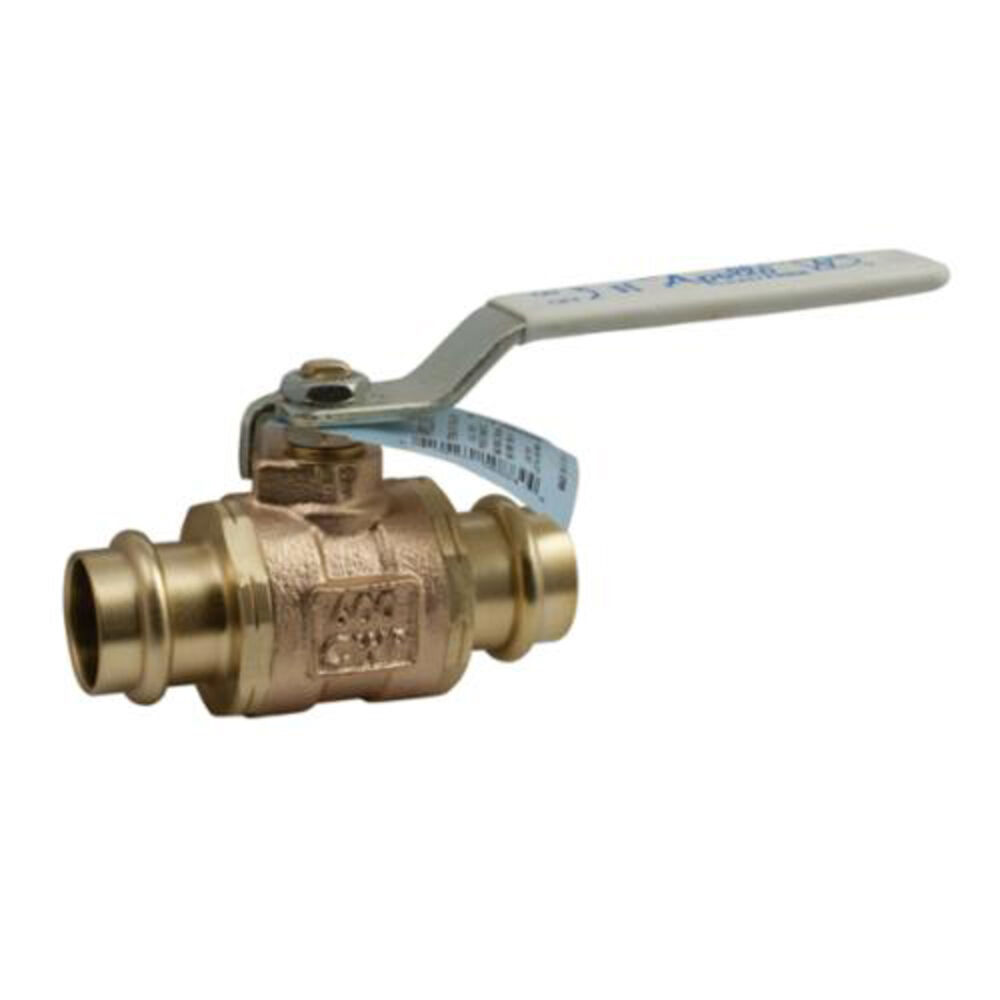

ApolloPress® 77WLF-108-01 2-Piece Ball Valve, 2 in, Press, Bronze Body, Full Port, Multi-Fill PTFE/EPDM Softgoods, Domestic
CON77WLF10801A
MFG #: 77WLF10801A
- Domestic / Import: Domestic
- End Style: PRESS
- Nominal Size: 2 in
- Actuator Type: Lever
- Ball Material: Chrome Plated Brass
- Inlet to Outlet Length: 7.47
- Manufacturer: Apollo Conbraco
- Manufacturer #: 77WLF10801A
- Pressure Rating: 250 psi
- Series: 77WLF
- Temperature Rating: 0 to 250 degF
- Top to Inlet Center: 3.48
- Type: 2-Piece
The Lead Free APOLLOXPRESS® 77WLF ball valve is ideal for installation in potable water systems requiring NSF 61 or Lead Free approval. Now with Leak Before Press® feature and 250 psig maximum working pressure.
ApolloPress® Ball Valve, 2-Piece, Series: 77WLF, 2 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 7.47 in Inlet to Outlet Length, 3.48 in Top to Inlet Center, Bronze Body, Brass Stem and Multi-Fill Seat Trim, Multi-Fill PTFE/EPDM Softgoods, Domestic
ApolloPress® Ball Valve, 2-Piece, Series: 77WLF, 2 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 7.47 in Inlet to Outlet Length, 3.48 in Top to Inlet Center, Bronze Body, Brass Stem and Multi-Fill Seat Trim, Multi-Fill PTFE/EPDM Softgoods, Domestic
- Features
- Adjustable stem packing nut
- Fast, easy, economical installation
- Leak before Press® technology
- Blow-out proof stem
- Corrosion resistant materials
- 100% factory tested
- Silicone free
- Ridgid® press tool compatible
- Zinc plated steel nut
- CDA C27451 retainer
- Plated steel/insulated polyvinyl handle
- Complies with Federal Public Law 111-380, ANSI 3Rd Party approved and Listed
- Multi-fill PTFE stem packing and EPDM O-ring
