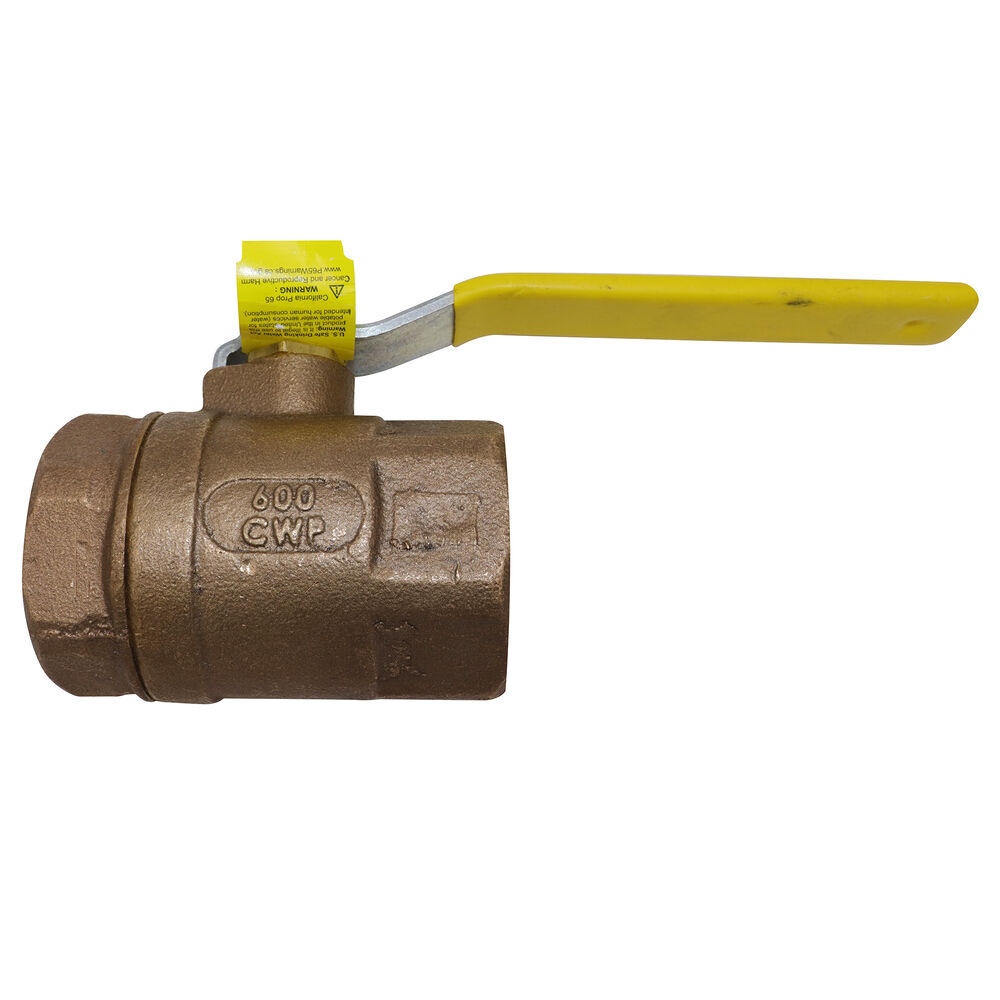

Apollo™ 70-148-64 70-140 2-Piece Ball Valve, 2 in, FNPT, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic
CON7014864
MFG #: 70-148-64
- Body Material: Bronze
- Domestic / Import: Domestic
- End Style: FNPT
- Nominal Size: 2 in
- Port Type: Standard
- Softgoods Material: PTFE/MPTFE
- Actuator Type: Lever
- Ball Material: Stainless Steel
- Inlet to Outlet Length: 4.68
- Manufacturer: Apollo Conbraco
- Manufacturer #: 70-148-64
- Series: 70-140
- Temperature Rating: 500 degF
- Top to Inlet Center: 3-1/4
- Trim Material: 316 Stainless Steel Stem and RPTFE Seat
- Type: 2-Piece
The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ Ball Valve, 2-Piece, Series: 70-140, 2 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Stainless Steel Ball, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/MPTFE Softgoods, Domestic
Apollo™ Ball Valve, 2-Piece, Series: 70-140, 2 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Stainless Steel Ball, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/MPTFE Softgoods, Domestic
- Features
- Product Videos
- 64: 250 lb steam trim (MPTFE seats and packing)
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Vacuum service to 29 in Hg
- Zinc plated with vinyl steel lever and grip
- 150 psig saturated steam
- Cold non-shock
- PTFE seal and MPTFE stem packing
