- Effluent or dewatering submersible pumps for septic tanks, low pressure pipe (LPP) and enhanced flow STEP systems.

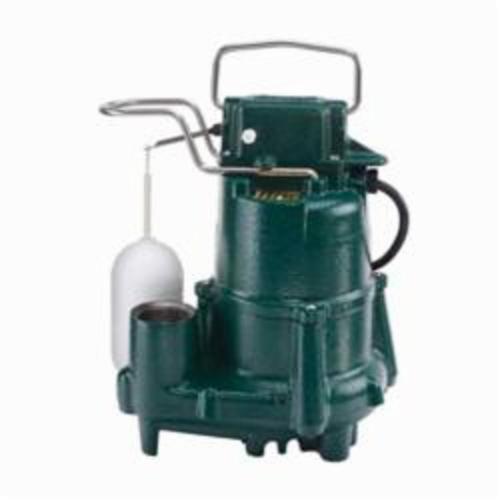

Submersible Pump, Single Phase Single Seal, Series: Flow-Mate 98, 72 gpm, 1-1/2 in NPT Outlet, 23 ft Maximum Head, 1/2 hp, 115 VAC, 9.4 A, 60 Hz, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Auto Reset Thermal Overload, Oil-Fed Cast Iron Bearing, Cast Iron, 10-1/8 in W x 12 in H, Domestic
- Corrosion-resistant, powder coated epoxy finish
- Cast iron switch case, motor, pump housing and base
- No steel sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000 lb tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float-operated 2-pole mechanical switch
- Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
- Upper and lower oil-fed cast iron bearing
- Carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Watertight, neoprene square ring between motor and pump housing
- Passes 1/2 in spherical solids
- No screens to clog
- 1-1/2 in NPT discharge (1-1/2 x 2 in PVC adapter included with BN and BE Models)
- Simplex and duplex systems available
- Packaged systems available
- Automatic and non-automatic available
- Available with piggyback variable level float switch
- For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump
- 9-1/2 in on point, 3 in off point
- 2-Pole Mechanical Switch, Stainless Steel Float Guard and Switch Arm, Solid Buoyant Polypropylene Float, Stainless Steel Handle and 15 ft Cord with Plug
- Maximum Head23 ftMotor HP1/2 HPVoltage Rating115 VAmperage Rating9.4 ABearing TypeSleeveCord Length15 ftCord Type3-Wire NeopreneFlow Rate72 gpmFrequency Rating60Impeller TypeNon-Clogging VortexManufacturerZoeller CompanyManufacturer #98-0005MaterialCast IronNon-Automatic / AutomaticAutomaticOutlet Size1-1/2 in NPTPhase1SeriesFlow-MateSpeed1725 rpmTemperature Rating130 degF
