- Stainless-steel manifolds feature isolation valves, balancing valves with flow meters, supply and return ball valves with temperature gauges, and come fully assembled, ready for installation. Targeted for commercial and residential radiant heating and cooling applications, the manifolds are available in 1 in and 1-1/4 in sizes. All manifold supply and return ball valves feature 1 in NPT thread except for 1-1/4 in manifold assemblies with 8, 10 and 12 loops which feature 1-1/4 in NPT.

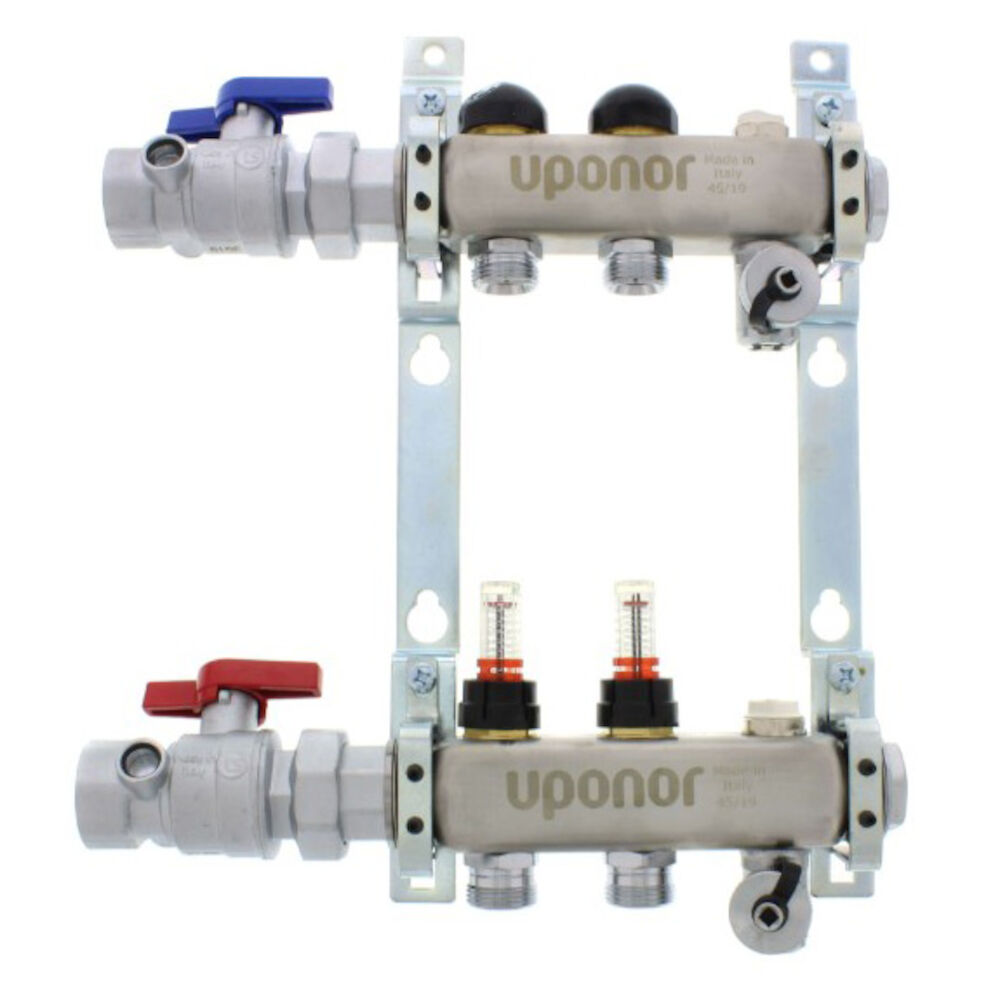

Uponor TruFLOW™ Manifold Assembly, 2 Outlets, 1 in Outlet, 43.8 to 145 psi, 68 to 194 deg F, Stainless Steel, 8.9 in L x 12.03 in W
- The 1-1/4 in manifolds with 2 through 7 loops are strategically designed with 1 in NPT ball valves to avoid adding extra costs while maintaining the maximum flow of the manifold assembly
- AISI304 stainless steel
- Brass CW614N-UNI EN12164, CW617N-UNI EN12165 manifold components
- 1 in ID manifold body
- 1.1 Cv manifold assembly loop
- R32 manifold body threaded connections
- R20 manifold loop threaded connections
- 14 gpm maximum fluid flow rate
- The 1 in stainless-steel manifolds are fully assembled and ready for installation, manifold assembly comes with mounting brackets, isolation valves, balancing valves, fill/purge ports, air vents, ball valves, temperature gauges and end caps, Manifold adapters and fittings are sold separately
- Accessories and Replacement Parts: A2771010: Mounting Bracket for Stainless-steel Manifold, 1 in, replacement part, set of 2, A2771021: Stainless-steel Manifold Flow Meter 1.5 GPM Valve Body, replacement part, A2771030: Stainless-steel Manifold Isolation Valve Body, replacement part, A2771035: Stainless-steel Manifold Isolation Valve Body, O-ring, replacement part, A2771040: Stainless-steel Manifold Replacement Gasket for R32 Union Connection, A2771060: Spacer Ring VA10 for White Thermal Actuator
- Isolation and balancing, ball valves, 4 loops
- MaterialStainless SteelNumber of Ports2Outlet Size1 inDimensions8.9 in L x 12.03 in WManufacturerUponorManufacturer #A2700202Pressure Rating43.8 to 145 psiTemperature Rating68 to 194 degF
