Taco®

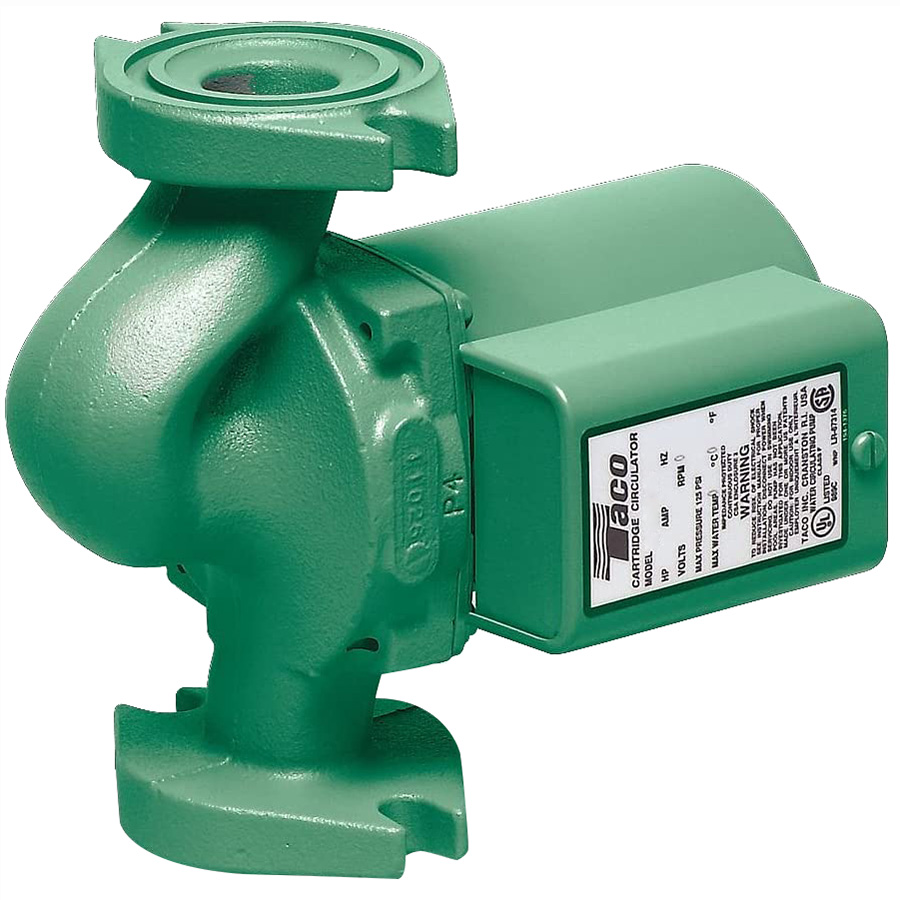

007-ZF5-IFC Zoning Cartridge Circulator Pump

TAC007ZF5IFC MFG #: 007-ZF5-IFC
007-ZF5-IFC Zoning Cartridge Circulator Pump
  • Flow Rate: 12.5 gpm
  • Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
  • Voltage Rating: 115 VAC
  • Dimensions: 7 in L x 6-3/8 in H
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 007-ZF5-IFC
  • Maximum Head: 11 ft
  • Maximum Pressure: 125 psi
  • Motor HP: 1/25 hp
  • Motor Speed: 3250 rpm
  • Phases: 1
  • Series: 007-IFC®
  • Temperature Rating: 240 deg F
  • Type: Zoning
The Taco® 007 cartridge circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.

007 ZF5 3IFC ZONE CIRC W/R-T & CHECK TACO
  • Features
  • Includes
  • Standard high capacity output compact design
  • Quiet, efficient operation
  • Direct drive-low power consumption
  • Unique replaceable cartridge design-field serviceable
  • Self lubricating
  • No mechanical seal
  • Unmatched reliability-maintenance free
  • Universal flange to flange dimensions
  • Motor specification - single phase, permanent split capacitor impedance protected
  • Cast iron casing
  • Steel stator housing
  • Stainless Steel cartridge and spring
  • Non metallic impeller
  • Ceramic shaft
  • Carbon bearing
  • EPDM O-ring and gasket
  • Zoning circulator
  • Acetal body and plunger
  • The 007-IFC with an integral flow check is designed to reduce installation costs when zoning with "00" circulators on hydronic or radiant heating, hydro-air fan coils or indirect water heaters
  • By locating the patented IFC™ inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs
Integral Flow Check
