Milwaukee Valve

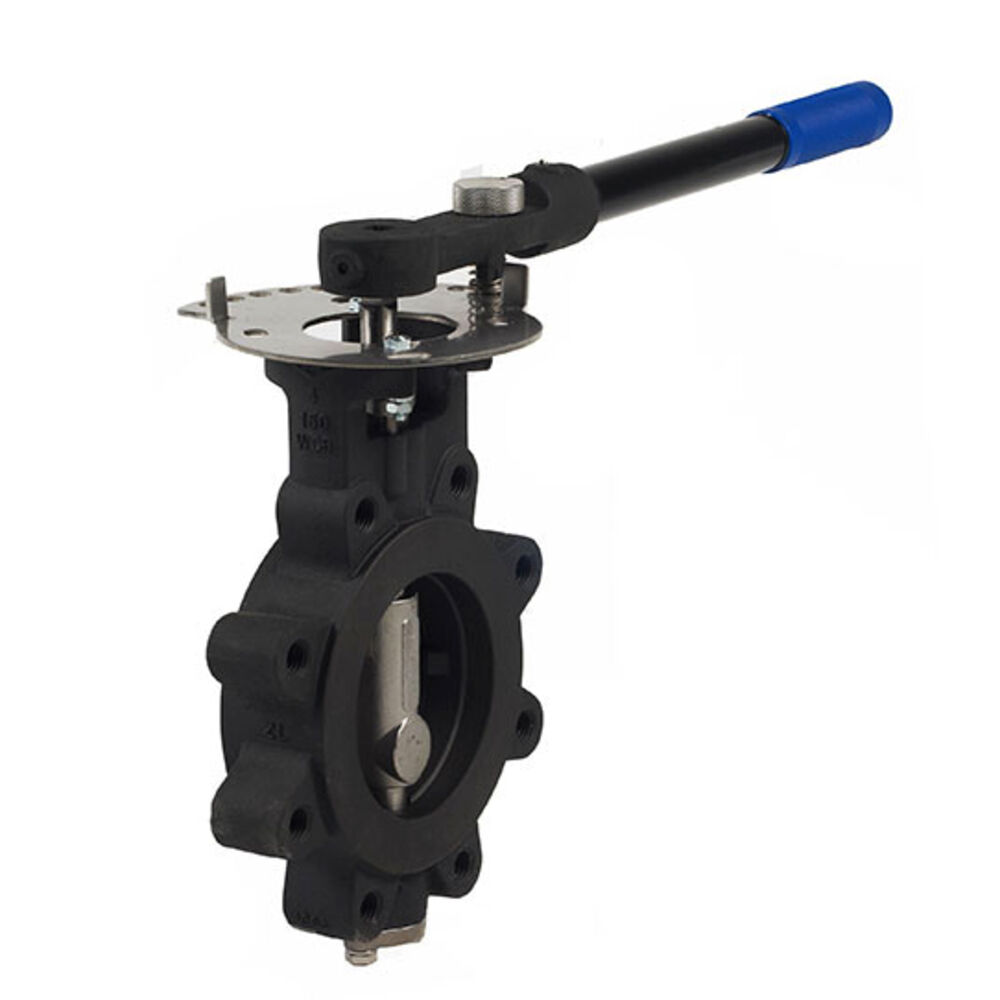

HP1LCS4212 040 HP Series High Performance Lug Style Butterfly Valve, 4 in, Carbon Steel Body
Sign In to View Pricing & Availability
- Milwaukee Valve Butterfly Valve, High Performance Lug Style, Series: HP Series, 4 in Nominal, Flange, 285 psig, 150 lb, Lever-Lock Handle Actuator, Carbon Steel Body, 17-4 PH Stainless Steel Stem and RPTFE Seat Trim, PTFE Softgoods, 14-1/4 in H
- Double offset geometry to provide superior sealing with minimal seat contact and wear
- Machined, tapered seat provides multiple sealing edges
- One-piece shaft and disc designed for maximum strength and Cv
- Internally cast disc position stop to prevent disc over travel while maintaining optimum disc/seat contact
- Stem is centered in the adjustable stem-packing by oversized bearings eliminating stem leakage and fugitive emissions
- Disc spacers to center disc in seat to eliminate seat distortion
- Blow-out proof stem prevents injury and product loss
- Combination mechanical and pressure energized seat design for repeatable and reliable sealing performance and extended cycle life
- Sealing retaining ring designed for double dead end service (lug style) and allows easy removal for seat replacement
- Stem/disc connection ensures minimal lost motion and high strength
- CF8M 316 stainless steel disc
- Stainless backed RTFE bearing
- Wrought carbon steel body
- Valve is rated at 150 psi steam for on and off application and 50 psi modulating service
- Limit range 30 to 70 deg F, no dwell in near closed position
- 285 psi CWP pressure
- PTFE stem packing
- Body MaterialCarbon SteelEnd StyleFlangedNominal Size4 inPressure Class150 LbSoftgoods MaterialPTFETypeHigh Performance Lug StyleActuator TypeLever-Lock HandleDimensions14-1/4 in HManufacturerMilwaukee ValveManufacturer #HP1LCS4212 040Pressure Rating285 psigSeriesHP SeriesTrim Material17-4 PH Stainless Steel Stem and RPTFE Seat
