JB Industries

A31854 Swivel Nut Tee Without Depressor, Brass

JBIA31854 MFG #: A31854

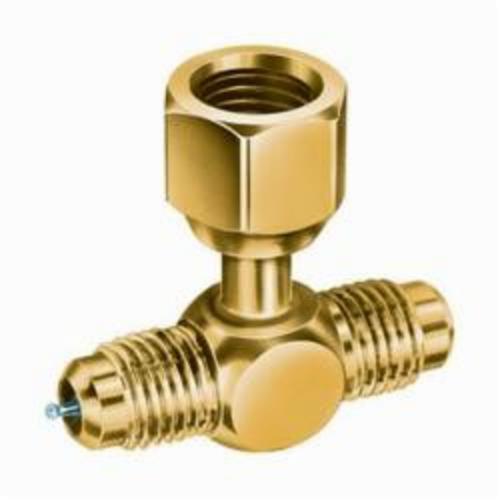

A31854 Swivel Nut Tee Without Depressor, Brass
  • Domestic / Import: Domestic
  • End Style: Access x Female SAE Swivel x Access
  • Material: BRASS
  • Nominal Size: 1/4 in
  • Manufacturer: JB Industries
  • Manufacturer #: A31854
JB machines all of the access valves at the factory in Aurora, Illinois using the highest level of brass consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content, resulting in higher failure rates. JB machines all of our valves to the strict guidelines of the ARI to ensure proper sealing of the valve and core surfaces.

JB Industries Swivel Nut Tee, 1/4 in Nominal, AccessxFemale SAE SwivelxAccess, For Use With: All R-12, R-22, R-134A, R-410A and R-502 Refrigerant, Brass, Domestic
  • Features
  • Generous counter bore allows removal of core if flare becomes damaged
  • All tees and crosses are tapped to receive an access core in all 1/4 in SAE flare ends
  • All pipe connections have internal braze cups for dip tube applications
  • -40 to 250 deg F
  • Valve core is stainless steel and brass for use with all refrigerants including R-410A
  • Resistant to oils, alkylites and diluted mineral acids
  • Offer a safe, simple installation without the need for brazing
  • All of the flare ends are tapped to receive access cores
  • All valves are equipped with cap and one valve core (braze type, loosely assembled)
  • No refrigerant loss on charged system
  • Add multiple ports with just one fitting
  • 1/4 in female SAE swivel tee without depressor, nut on branch
