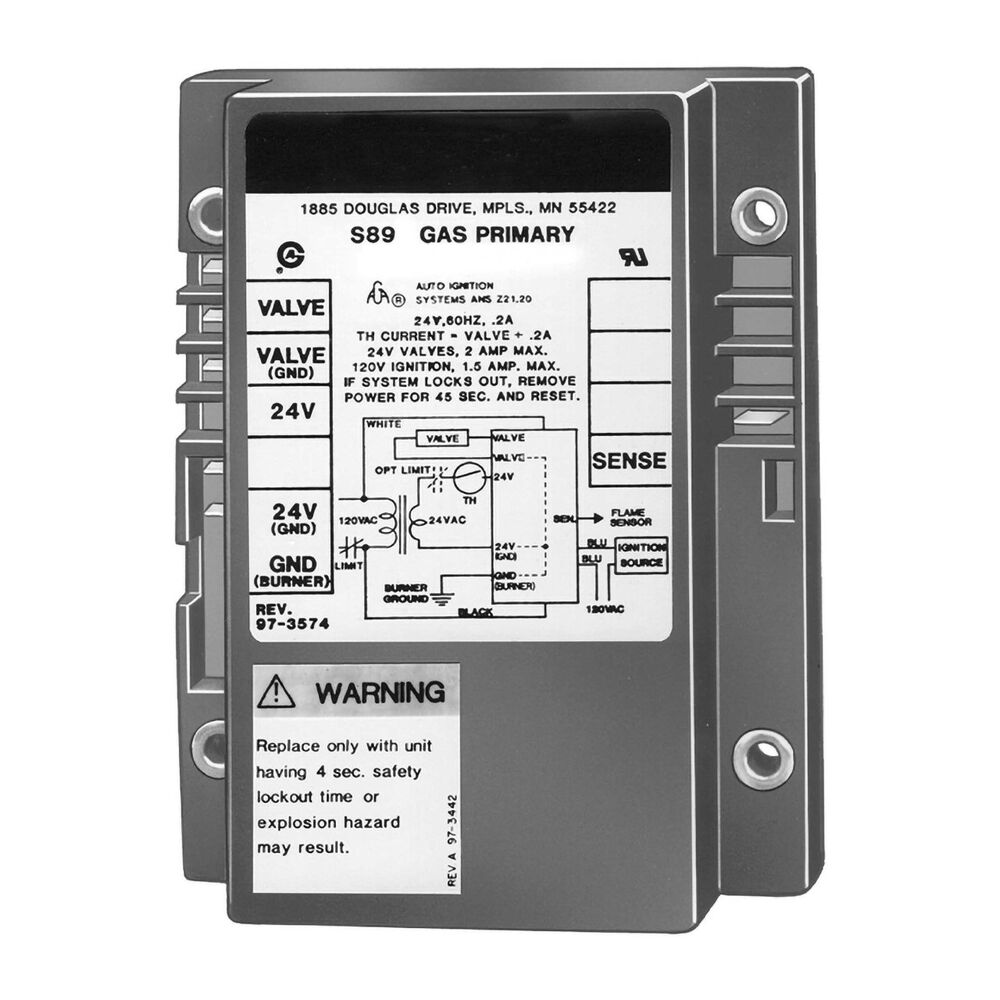

Honeywell S89C1087/U Single Rod Hot Surface Ignition Control With 6 Sec Trial and Lockout Timing, 24 VAC, 2 A, Import

HONS89C1087U MFG #: S89C1087/U
Honeywell S89C1087/U Single Rod Hot Surface Ignition Control With 6 Sec Trial and Lockout Timing, 24 VAC, 2 A, Import
  • Amperage Rating: 2 A
  • Domestic / Import: Import
  • Voltage Rating: 24 VAC
  • Height: 5-1/4 in
  • Manufacturer: Honeywell
  • Manufacturer #: S89C1087/U
  • Suitable For Use With: Hot Surface Ignition System
  • Type: Single Rod
  • Width: 4-1/16 in
Provide operating control and system shutdown on loss of main burner flame in direct ignition central heat furnaces and heating appliances with hot surface igniter.

Hot Surface Ignition Control, Single Rod, 24 VAC, 2 A, 5-1/4 in Height, 4-1/16 in Width, For Use With: Hot Surface Ignition System, Import
  • Features
  • S89C, G, J are for systems with a combination igniter- sensor
  • S89C lock out after one try for ignition S89G,H provide three tries for ignition before lockout, with 30 sec min purge before second and third tries
  • Compatible with Norton 201 and 271 or equivalent hot surface igniters
  • Modules can be used on either natural or LP gas, they provide 100 percent shutoff of gas on lockout
  • Modules have relay contacts for use with any direct ignition gas control with max 2 A, 24 W rating
  • 1-15/16 in L
  • 2 sec at 2.5 mu a flame failure response time
  • -40 to 175 deg F ambient temperature
  • Direct hot surface ignition
  • Single trial for main burner ignition (then shut down and lockout)
  • VR8205, VR8305 gas control
  • 1 Ignition trials to lockout
