Honeywell L8124A1049/U Triple Aquastat Relay, Vertical Mount

HONL8124A1049U MFG #: L8124A1049/U

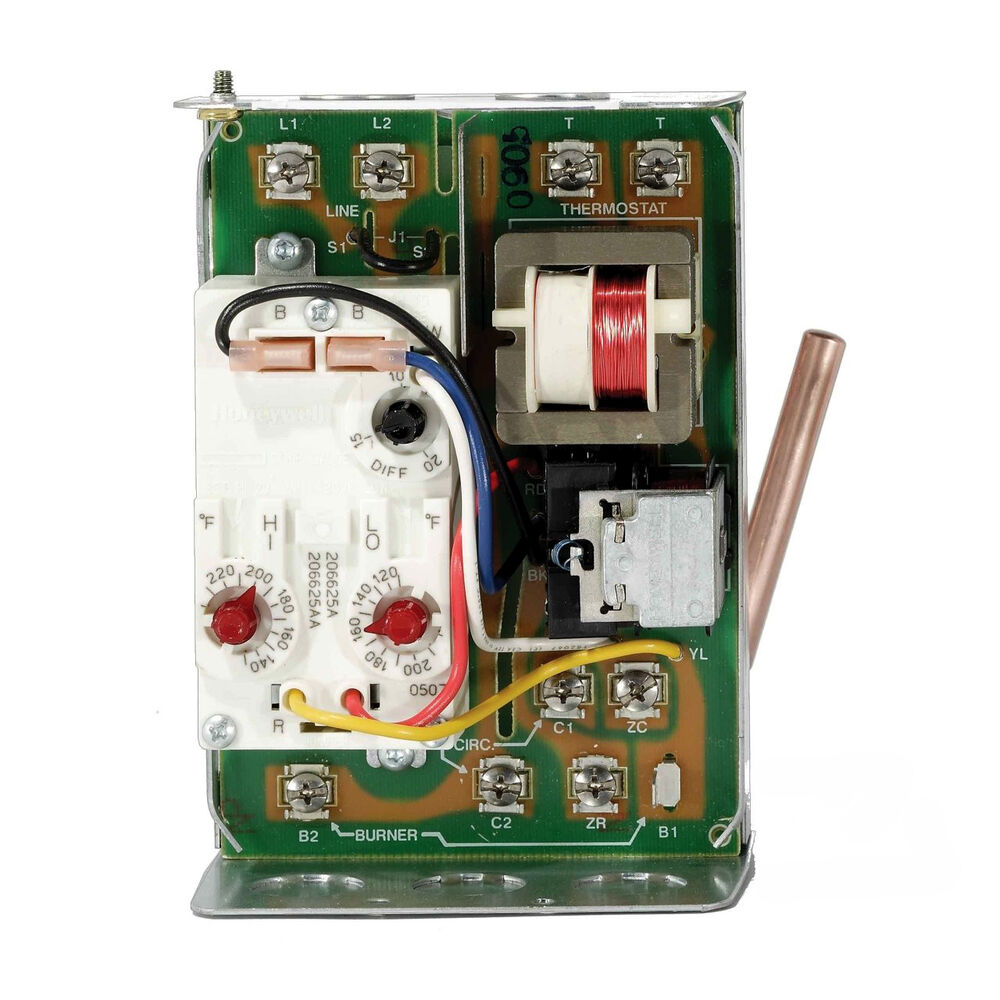

Honeywell L8124A1049/U Triple Aquastat Relay, Vertical Mount
  • Domestic / Import: Domestic
  • Mounting Type: Vertical
  • Temperature Rating: 130 to 240 deg F
  • Depth: 3-1/16 in
  • Height: 6-1/8 in
  • Humidity Range: 0 to 95% RH Non-Condensing
  • Manufacturer: Honeywell
  • Manufacturer #: L8124A1049/U
  • Series: L8124A
  • Type: Triple
  • Width: 4-3/8 in
Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.

Aquastat Relay, Triple, Series: L8124A, 130 to 240 deg F, 10 deg F Fixed High Limit, 10 to 25 deg F Adjustable Low Limit Differential, Vertical Mount, 0 to 95% RH Non-Condensing Humidity, 4-3/8 in Width, 3-1/16 in D, 6-1/8 in Height, Domestic
  • Features
  • Provide multizone control by using a separate circulator and R845 Relay for each zone
  • Include diaphragm powerhead and Micro switch™ assembly that respond to temperature changes in boiler water
  • Mount directly to boiler
  • Select models include large transformers and extra terminals for supplying power to low voltage zone valves
  • TRADELINE® models include tube of heat conductive compound and range stops
  • High limit protection, low limit and circulation control
  • 200 psi on outside of immersion well, 100 psi on capsule if inserted directly maximum safe operating pressure
  • 150 deg F ambient temperature at switches and 265 deg F temperature at sensing element
  • Electrical ratings: burner: full load 7.4 A at 120 VAC : 3.7 A at 240 VAC and locked rotor 44.4 A at 120 VAC: 22.2 A at 240 VAC
  • Electrical ratings: circulator: full load 7.4 A at 120 VAC : 3.7 A at 240 VAC and locked rotor 44.4 A at 120 VAC: 22.2 A at 240 VAC
