- The SlideLOK® coupling is the most rigid ready for installation coupling designed to reduce installation time. The slide action eases assembly and reduces installation time. The patented gasket provides four separate sealing surfaces for added protection. The SlideLOK® coupling is designed to be used with roll groove or cut groove steel pipe, grooved light wall pipe, Gruvlok® grooved-end fittings, and valves. The SlideLOK® coupling allows for a maximum working pressure of 750 psi on roll or cut grooved carbon steel standard wall pipe. The SlideLOK® coupling provides a rigid connection allowing pipe hanging practices per ASME B31 Pipe Codes.

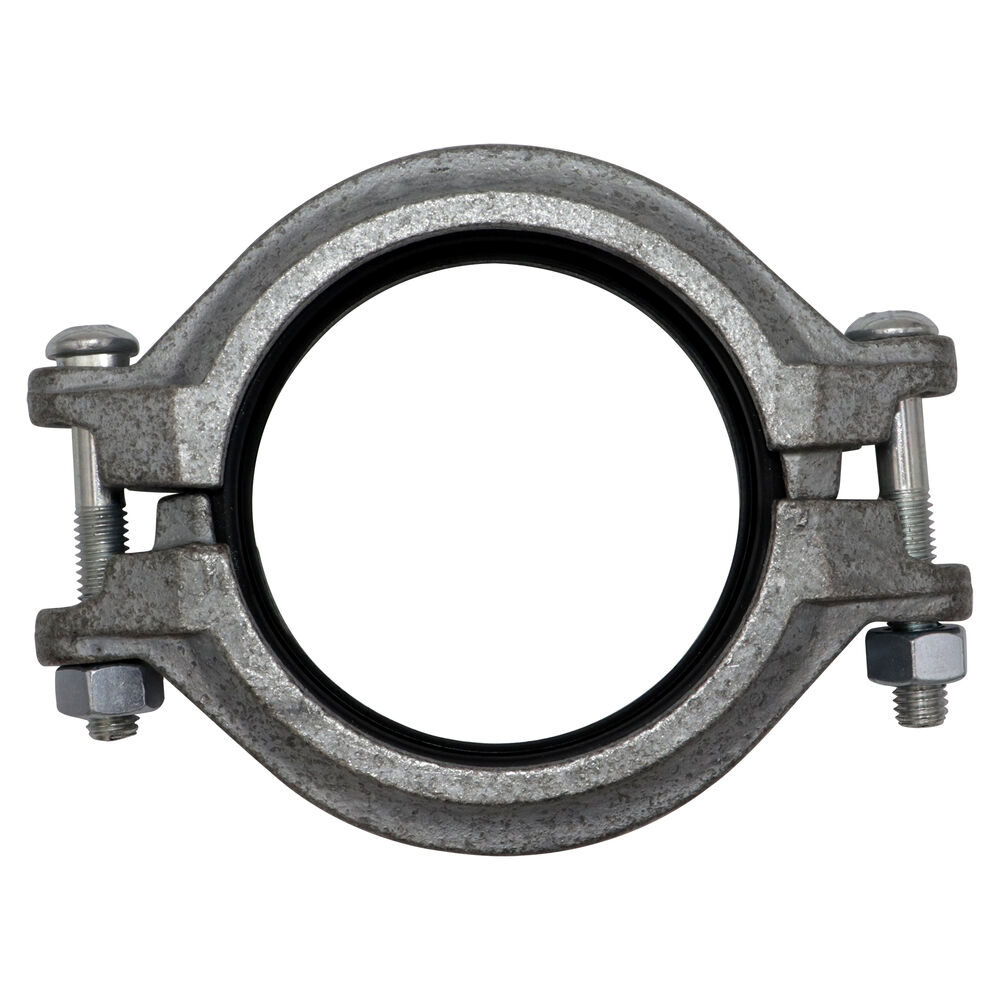

Gruvlok® SlideLOK® Coupling, Series: FIG 74, Fitting/Connector Type: Coupling, 4 in Nominal, Grooved, 8-5/16 in Length, 750 psi, Ductile Iron, Hot Dipped Zinc Galvanized, -40 to 250 deg F, 4-1/2 in OD x 2 in D
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many chemical services
- Not for use in petroleum application
- (2) 1/2 x 3-1/2 in Zinc Electroplated Bolts, Zinc Electroplated Heavy Hexagonal Nuts and Grade EP EPDM Green/Red Gasket
- End StyleGroovedFinishHot Dipped Zinc GalvanizedFitting / Connector TypeCouplingMaterialDuctile IronNominal Size4 inDimensions4-1/2 in OD x 2 in DLength8-5/16 inManufacturerAnvil InternationalManufacturer #0390113066Pressure Rating750 psiSeriesFIG 74Temperature Rating-40 to 250 degF
