Bell & Gossett

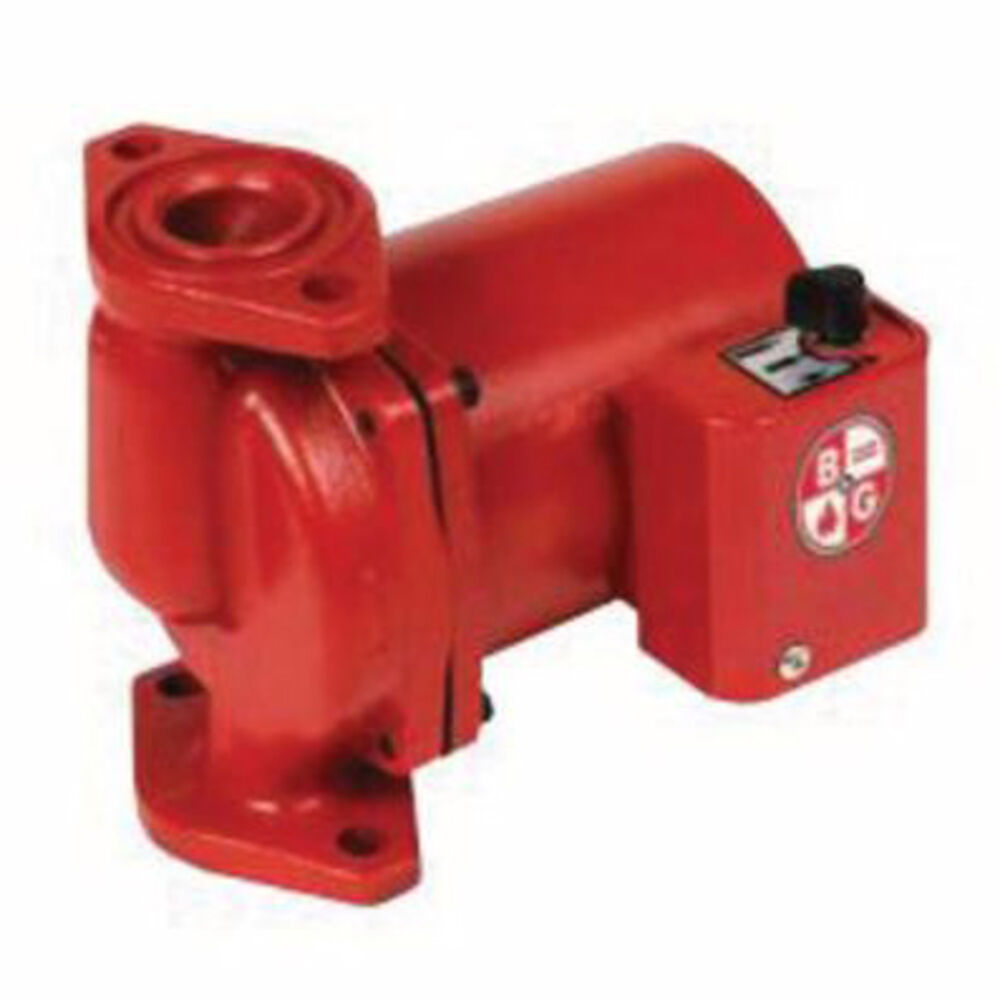

Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump, 24 gpm, 115 VAC

BEL103417 MFG #: 103417
Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump, 24 gpm, 115 VAC
  • Flow Rate: 24 gpm
  • Voltage Rating: 115 VAC
  • Amperage Rating: 1.1 A
  • Dimensions: 5-1/8 in W x 6-3/16 in D x 4-7/8 in H
  • Frequency Rating: 60 Hz
  • Manufacturer: Xylem
  • Manufacturer #: 103417
  • Maximum Head: 19
  • Maximum Pressure: 150 psi
  • Motor Speed: 2950
  • Mounting Type: In-line
  • Power Rating: 125 W
  • Series: NRF
  • Temperature Rating: 225 deg F
  • Type: 3-Speed
A flanged in-line system lubricated circulating pump designed specifically for quiet operation in a closed hydronic heating system.

Bell & Gossett Wet Rotor Circulator Pump, 3-Speed, Series: NRF, 24 gpm, 19 ft Maximum Head, 125 W, 115 VAC, 1.1 A, 60 Hz, 150 psi Maximum, 2950 rpm Motor, In-line Mount, 225 deg F, 5-1/8 in W x 6-3/16 in D x 4-7/8 in H
  • Features
  • High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
  • Unique B and G DuraGlide bearing system assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by B and G's representatives and a 3-year warranty-the best in the business
  • DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange connection
  • Construction: cast iron pump body, Noryl impeller, ceramic shaft, carbon bearings
