A.Y. McDonald

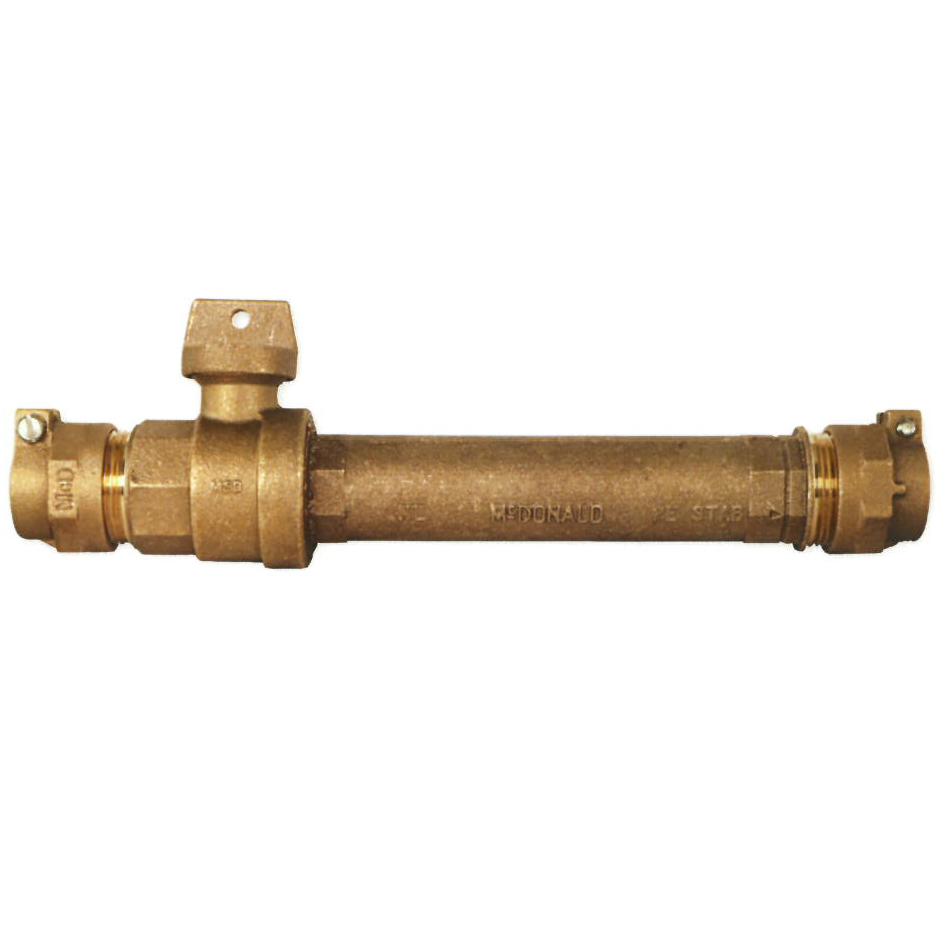

A.Y. McDonald 5183-319, 76104REPQ 1X10.50 Ball Valve, 1 x 10-1/2" Nominal, CTS End Style

AYM5183319 MFG #: 5183-319
A.Y. McDonald 5183-319, 76104REPQ 1X10.50 Ball Valve, 1 x 10-1/2" Nominal, CTS End Style
  • Body Material: BRASS
  • End Style: CTS
  • Nominal Size: 1 x 10-1/2 in
  • Softgoods Material: EPDM
  • Manufacturer: A.Y. McDonald
  • Manufacturer #: 5183-319
  • Pressure Rating: 300 psig
A.Y. McDonald now offers a product that can eliminate a join when replacing an existing curb stop and connection where additional length is required because removal of the existing curb stop caused the replacement gap to be longer than the standard curb stop. Use this product whenever to make up the difference in lay length of an existing valve and remaining lay length once valve and tubing is removed.

A.Y. McDonald Ball Valve, Lead Free, 1 x 10-1/2 in Nominal, CTS
  • Features
  • Minneapolis pattern body
  • Curb stops
  • End piece joint sealed with an EPDM o-ring and thread locker
  • Insert stiffeners required on all flexible plastic connections.
  • Blow out proof EPDM port seals w/ supported PTFE Coated brass ball.
  • No-lead construction.
