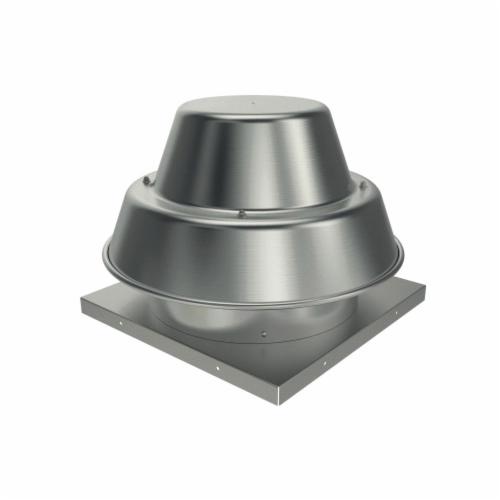

Fantech® 5DDD10AA Direct-Drive Downblast Roof Fan, 994 cfm, 115 VAC, 1/6 hp, Domestic

FAN5DDD10AA MFG #: 5DDD10AA
Fantech® 5DDD10AA Direct-Drive Downblast Roof Fan, 994 cfm, 115 VAC, 1/6 hp, Domestic
  • Domestic / Import: Domestic
  • Flow Rate: 994 cfm
  • Motor HP: 1/6 hp
  • Voltage Rating: 115 VAC
  • Amperage Rating: 2.7
  • Base Size: 19
  • Dimensions: 22-3/8 in W x 16-1/2 in H
  • Frequency Rating: 60
  • Manufacturer: Fantech
  • Manufacturer #: 5DDD10AA
  • Material: Aluminum
  • Series: 5DDD
  • Speed: 1720
  • Type: Direct-Drive
Direct-drive downblast ventilators are designed for use where steady exhaust ventilation is needed under low to moderate static pressure conditions. Ventilators can be mounted on the roof or wall. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.

Fantech® Downblast Roof Fan, Direct-Drive, Series: 5DDD, 994 cfm, 115 VAC, 2.7 A, 1/6 hp, 60 Hz, 19 in Base, 1720 rpm, Aluminum, 22-3/8 in W x 16-1/2 in H, Domestic
  • Features
  • One-piece removable exhaust hood
  • Backward inclined aluminum fan wheel
  • Equipped with a built-in bird screen to protect discharge
  • Externally cooled motor compartment
  • 1-phase
  • Insulation class: B
  • IP54 motor enclosure
  • Compatible motors and drive-packs (5ACC 01MS motor disconnect switch, 5ACC03SC speed control, 5ACC12RD roof mount damper, 5ACC17FS fixed non-vented curb, 5ACC17FT fixed non-vented curb)
  • Maximum temperature of transported air: 170 deg F
