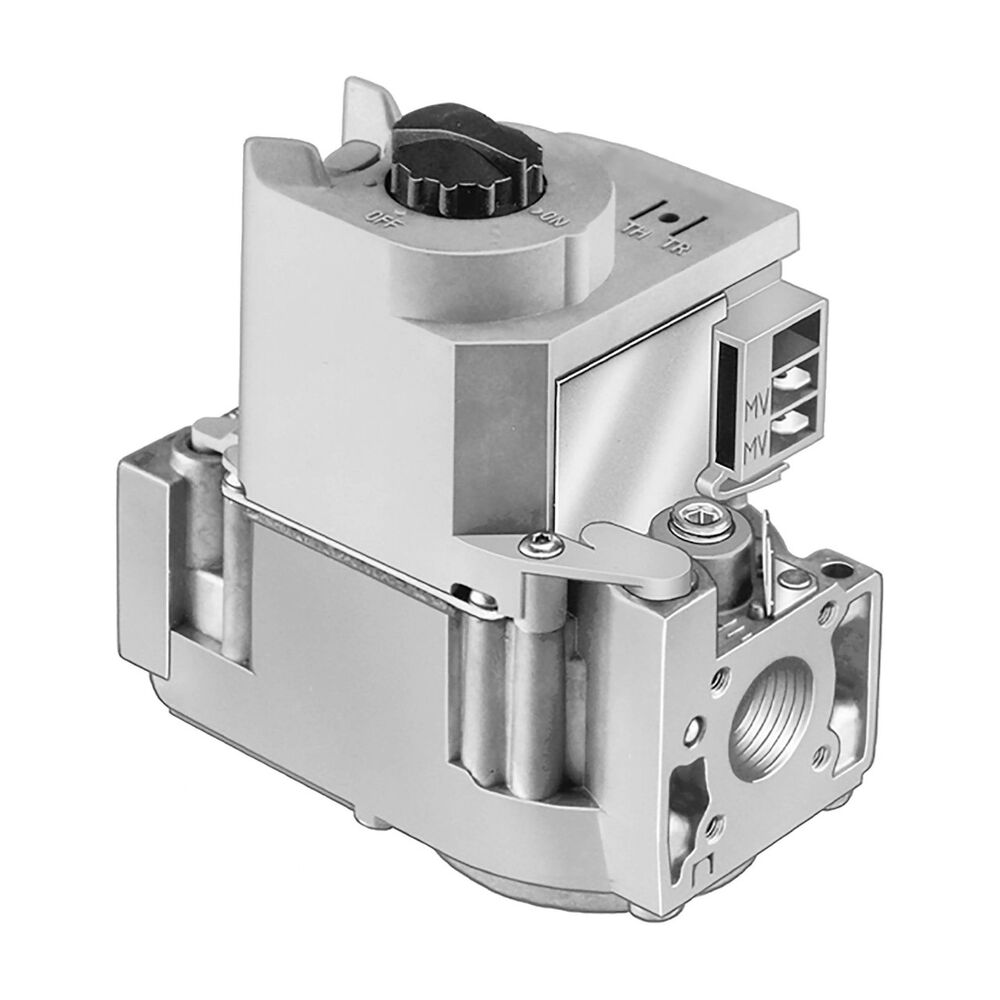

Honeywell VR8205M2823T/U Standard Opening Dual Automatic Valve Combination Gas Control, 24 VAC, 0.5 A, Direct Ignition, 0.5 psi

HONVR8205M2823TU MFG #: VR8205M2823T/U

Amperage Rating: 0.5 A
Ignition Type: Direct
Pressure Rating: 0.5 psi
Voltage Rating: 24 VAC
Dimensions: 4-1/8 in W x 2-11/16 in D
Manufacturer: Honeywell
Manufacturer #: VR8205M2823T/U
Mounting Type: Vertical
Series: VR8205
Temperature Rating: 0 to 175 degF
Type: Standard Opening

Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.

Dual Automatic Valve Combination Gas Control, Standard Opening, Series: VR8205, 24 VAC, 0.5 A, Direct Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/8 in W x 2-11/16 in D

Features
Includes

Provide two automatic valves
Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
Meets codes requiring dual safety shutoff
All adjustments, wiring connections and pilot outlet are accessible from top of control
On-off lighting sequence

Inlet and Outlet Screen, 1-Stage Natural to LP Conversion Kit, Manual Valve, 390427B/U (1) 1/2 x 3/8 in Reducer Bushing, (1) 3/4 in Straight Flange, (2) Automatic Operators and Pressure Regulator
