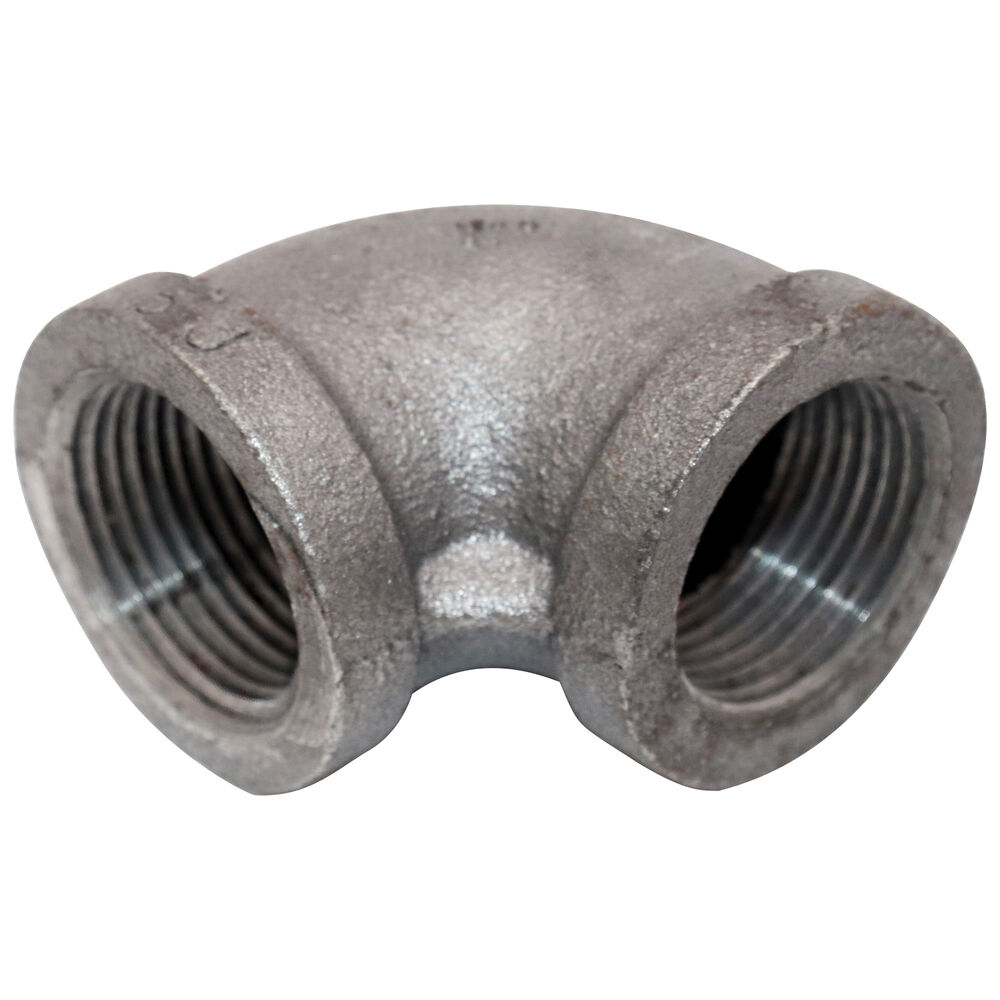

Anvil® | Anvil® 0310001201 FIG 1101 Standard 90 deg Pipe Elbow, 1 in, FNPT, 150 lb, Malleable Iron, Black, Domestic

Item #B90G

MFG #0310001201

UPC662467321908

: SPF/Anvil™ Malleable Iron Pipe Fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SPF/Anvil Malleable Iron Fittings are tested for through wall porosity using an air under water process. Malleable Iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.

Anvil® Pipe Elbow, Standard, Series: FIG 1101, Fitting/Connector Type: 90 deg Elbow, 1 in Nominal Size, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black, -20 to 150 deg F, Domestic

: Domestic / ImportDomestic
End StyleFNPT
FinishBlack
Fitting / Connector Type90 deg Elbow
MaterialMalleable Iron
Nominal Size1 in
Pressure Class150 Lb
ManufacturerAnvil International
Manufacturer #0310001201
Pressure Rating300 psi
Schedule RatingSCH 40/STD
SeriesFIG 1101
Temperature Rating-20 to 150 degF
TypeStandard
